Valtec brass T-pieces for multilayer pipes

Home→ Catalog→ VALTEC→ Multilayer systems→ T-pieces

A T-piece is a special fitting wich is designed for connection of three pipes to each other.

Valtec T-pieces can be divided into several types:

  • Equal - this type of fitting allows to connect pipes with the same diameter.
  • Reducer - this fittings are used to connect pipes with different diameters.
  • Threaded - T-pieces are equipped with male or female thread which is corresponding to GOST.

The body of the T-pieces is made of plumbing brass CW617N, the sealing rings are made of EPDM, the press sleeves are made of stainless steel.

Valtec T-pieces, which are connected by pressing, provide high throughput, are characterized by reliability of joints, durability and heat resistance. Special tools with “TH” type jaws are used for mounting.

Photo Name Article Price
Photo Draft

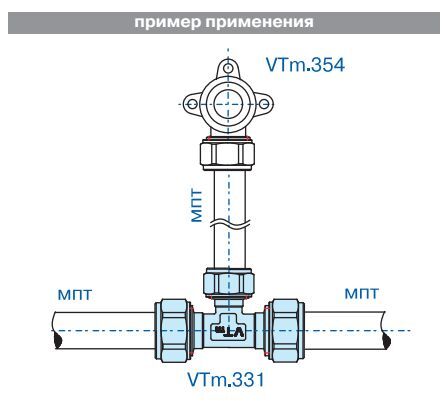

Photo VALTEC T-piece, pressing connection, d - 26х32х26 [Code number: VTm.331.N.263226] Draft VALTEC T-piece, pressing connection, d - 26х32х26 [Code number: VTm.331.N.263226]
VALTEC T-piece, pressing connection, d - 26х32х26 [Code number: VTm.331.N.263226]
Details 		VTm.331.N.263226 2 023 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
32 26 26 99 52,5 0,716

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, d - 32х16х32 [Code number: VTm.331.N.321632] Draft VALTEC T-piece, pressing connection, d - 32х16х32 [Code number: VTm.331.N.321632]
VALTEC T-piece, pressing connection, d - 32х16х32 [Code number: VTm.331.N.321632]
Details 		VTm.331.N.321632 2 189 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
16 32 32 105 42 0,662

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, d - 32х20х32 [Code number: VTm.331.N.322032] Draft VALTEC T-piece, pressing connection, d - 32х20х32 [Code number: VTm.331.N.322032]
VALTEC T-piece, pressing connection, d - 32х20х32 [Code number: VTm.331.N.322032]
Details 		VTm.331.N.322032 2 391 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
20 32 32 105 52,5 0,710

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, d - 32х26х26 [Code number: VTm.331.N.322626] Draft VALTEC T-piece, pressing connection, d - 32х26х26 [Code number: VTm.331.N.322626]
VALTEC T-piece, pressing connection, d - 32х26х26 [Code number: VTm.331.N.322626]
Details 		VTm.331.N.322626 2 155 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
26 32 26 102 49,5 0,688

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, d - 32х26х32 [Code number: VTm.331.N.322632] Draft VALTEC T-piece, pressing connection, d - 32х26х32 [Code number: VTm.331.N.322632]
VALTEC T-piece, pressing connection, d - 32х26х32 [Code number: VTm.331.N.322632]
Details 		VTm.331.N.322632 2 458 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
26 32 32 105 49,5 0,730

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, d - 32х32х26 [Code number: VTm.331.N.323226] Draft VALTEC T-piece, pressing connection, d - 32х32х26 [Code number: VTm.331.N.323226]
VALTEC T-piece, pressing connection, d - 32х32х26 [Code number: VTm.331.N.323226]
Details 		VTm.331.N.323226 2 366 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
32 32 26 102 52,5 0,745

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, d - 32 [Code number: VTm.331.N.323232] Draft VALTEC T-piece, pressing connection, d - 32 [Code number: VTm.331.N.323232]
VALTEC T-piece, pressing connection, d - 32 [Code number: VTm.331.N.323232]
Details 		VTm.331.N.323232 2 951 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
mm mm mm mm mm kg/pc
32 32 32 105 52,5 0,892

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft

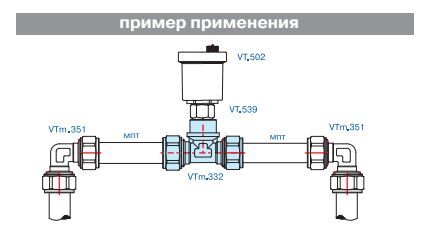

Photo VALTEC T-piece, pressing connection, with female thread, d - 16х1/2" [Code number: VTm.332.N.160416] Draft VALTEC T-piece, pressing connection, with female thread, d - 16х1/2" [Code number: VTm.332.N.160416]
VALTEC T-piece, pressing connection, with female thread, d - 16х1/2" [Code number: VTm.332.N.160416]
Details 		VTm.332.N.160416 370 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1/2" 16 16 65 27,5 0,141

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with female thread, d - 20х1/2" [Code number: VTm.332.N.200420] Draft VALTEC T-piece, pressing connection, with female thread, d - 20х1/2" [Code number: VTm.332.N.200420]
VALTEC T-piece, pressing connection, with female thread, d - 20х1/2" [Code number: VTm.332.N.200420]
Details 		VTm.332.N.200420 648 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1/2" 20 20 77 27,5 0,243

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with female thread, d - 20х3/4" [Code number: VTm.332.N.200520] Draft VALTEC T-piece, pressing connection, with female thread, d - 20х3/4" [Code number: VTm.332.N.200520]
VALTEC T-piece, pressing connection, with female thread, d - 20х3/4" [Code number: VTm.332.N.200520]
Details 		VTm.332.N.200520 671 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
3/4" 20 20 77 31,5 0,264

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with female thread, d - 26х3/4" [Code number: VTm.332.N.260526] Draft VALTEC T-piece, pressing connection, with female thread, d - 26х3/4" [Code number: VTm.332.N.260526]
VALTEC T-piece, pressing connection, with female thread, d - 26х3/4" [Code number: VTm.332.N.260526]
Details 		VTm.332.N.260526 921 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
3/4" 26 26 88 35 0,324

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with female thread, d - 26х1" [Code number: VTm.332.N.260626] Draft VALTEC T-piece, pressing connection, with female thread, d - 26х1" [Code number: VTm.332.N.260626]
VALTEC T-piece, pressing connection, with female thread, d - 26х1" [Code number: VTm.332.N.260626]
Details 		VTm.332.N.260626 1 147 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1" 26 26 88 39 0,371

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with female thread, d - 32х1" [Code number: VTm.332.N.320632] Draft VALTEC T-piece, pressing connection, with female thread, d - 32х1" [Code number: VTm.332.N.320632]
VALTEC T-piece, pressing connection, with female thread, d - 32х1" [Code number: VTm.332.N.320632]
Details 		VTm.332.N.320632 2 175 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1" 32 32 105 42 0,712

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with female thread, d - 32х1 1/4" [Code number: VTm.332.N.320732] Draft VALTEC T-piece, pressing connection, with female thread, d - 32х1 1/4" [Code number: VTm.332.N.320732]
VALTEC T-piece, pressing connection, with female thread, d - 32х1 1/4" [Code number: VTm.332.N.320732]
Details 		VTm.332.N.320732 2 493 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Female thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1 1/4" 32 32 105 50 0,733

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with male thread, d - 16х1/2" [Code number: VTm.333.N.160416] Draft VALTEC T-piece, pressing connection, with male thread, d - 16х1/2" [Code number: VTm.333.N.160416]
VALTEC T-piece, pressing connection, with male thread, d - 16х1/2" [Code number: VTm.333.N.160416]
Details 		VTm.333.N.160416 406 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1/2" 16 16 65 27,5 0,132

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with male thread, d - 20х1/2" [Code number: VTm.333.N.200420] Draft VALTEC T-piece, pressing connection, with male thread, d - 20х1/2" [Code number: VTm.333.N.200420]
VALTEC T-piece, pressing connection, with male thread, d - 20х1/2" [Code number: VTm.333.N.200420]
Details 		VTm.333.N.200420 658 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1/2" 20 20 77 27,5 0,240

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with male thread, d - 20х3/4" [Code number: VTm.333.N.200520] Draft VALTEC T-piece, pressing connection, with male thread, d - 20х3/4" [Code number: VTm.333.N.200520]
VALTEC T-piece, pressing connection, with male thread, d - 20х3/4" [Code number: VTm.333.N.200520]
Details 		VTm.333.N.200520 619 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
3/4" 20 20 77 31,5 0,244

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with male thread, d - 26х3/4" [Code number: VTm.333.N.260526] Draft VALTEC T-piece, pressing connection, with male thread, d - 26х3/4" [Code number: VTm.333.N.260526]
VALTEC T-piece, pressing connection, with male thread, d - 26х3/4" [Code number: VTm.333.N.260526]
Details 		VTm.333.N.260526 928 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
3/4" 26 26 88 35 0,303

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with male thread, d - 26х1" [Code number: VTm.333.N.260626] Draft VALTEC T-piece, pressing connection, with male thread, d - 26х1" [Code number: VTm.333.N.260626]
VALTEC T-piece, pressing connection, with male thread, d - 26х1" [Code number: VTm.333.N.260626]
Details 		VTm.333.N.260626 900 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1" 26 26 88 39 0,324

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings
Photo Draft
Photo VALTEC T-piece, pressing connection, with male thread, d - 32х1" [Code number: VTm.333.N.320632] Draft VALTEC T-piece, pressing connection, with male thread, d - 32х1" [Code number: VTm.333.N.320632]
VALTEC T-piece, pressing connection, with male thread, d - 32х1" [Code number: VTm.333.N.320632]
Details 		VTm.333.N.320632 2 121 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • For connection metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years



D1 D2 D3 А В Weight
  mm mm mm mm kg/pc
1" 32 32 105 42 0,672

Download data sheet: VALTEC Compression fittings VALTEC Compression fittings

See also

%d0%a1%d0%be%d0%b5%d0%b4%d0%b8%d0%bd%d0%b8%d1%82%d0%b5%d0%bb%d1%8c%d0%bd%d1%8b%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Connecting elements
%d0%9f%d0%b5%d1%80%d0%b5%d1%85%d0%be%d0%b4%d1%8b %d0%bd%d0%b0 %d0%bf%d0%bb%d0%b0%d1%81%d1%82%d0%b8%d0%ba
PP-adapter Konfix etc.
%d0%a3%d1%81%d0%b8%d0%bb%d0%b8%d0%b2%d0%b0%d1%8e%d1%89%d0%b8%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Strengthen connecting elements

© Inrusstrade.ru 1999-2024. "Inrusstrade" Ltd. Copying and quoting is prohibited
