| Photo |
Name |
Article |
Price |
|
|

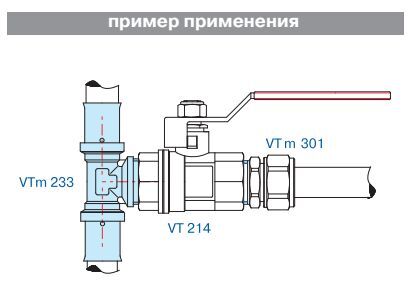

VALTEC T-piece with male thread, d - 20х3/4"х20 [Code number: VTm.233.N.200520]
Details
|
VTm.233.N.200520 |
591 rub |
Application purpose:
- For metal-polymer and polymer pipes
- To create permanent connections
- For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other
Characteristics:
- Pressing tool attachment type - TH (according to the REMS catalog)
- Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
- The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
- Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
- O-rings made of EPDM
- Nominal pressure 2.5 MPa
- Working pressure 1.0 MPa
- Maximum temperature of the working environment +115 ºС
- Minimum storage temperature -30 ºС
- Emergency working environment temperature +130 ºС
- Sleeve compression force, not less than 1200 N
- Average full service life 50 years
Allowable pipe parameters:
| Outer pipe diameter, mm |
16 |
20 |
26 |
32 |
40 |
| |
|
|
|
|
|
| Pipe wall thickness, mm |
2,0 |
2,0 |
3,0 |
3,0 |
3,5 |
| Aluminum thickness (no more), mm |
0,4 |
0,5 |
0,5 |
0,5 |
0,5 |
| Swaging zone diameter, mm |
16,7 |
20,7 |
26,7 |
32,7 |
40,8 |
| А |
В |
D1 |
D2 |
G |
Weight |
| mm |
mm |
mm |
mm |
|
kg/pc |
| 88 |
32 |
20 |
20 |
3/4" |
0,171 |
Download data sheet:  Connecting parts for VALTEC pressfitting
|
|
|
VALTEC T-piece with male thread, d - 26х1/2"х26 [Code number: VTm.233.N.260426]
Details
|
VTm.233.N.260426 |
814 rub |
Application purpose:
- For metal-polymer and polymer pipes
- To create permanent connections
- For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other
Characteristics:
- Pressing tool attachment type - TH (according to the REMS catalog)
- Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
- The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
- Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
- O-rings made of EPDM
- Nominal pressure 2.5 MPa
- Working pressure 1.0 MPa
- Maximum temperature of the working environment +115 ºС
- Minimum storage temperature -30 ºС
- Emergency working environment temperature +130 ºС
- Sleeve compression force, not less than 1200 N
- Average full service life 50 years
Allowable pipe parameters:
| Outer pipe diameter, mm |
16 |
20 |
26 |
32 |
40 |
| |
|
|
|
|
|
| Pipe wall thickness, mm |
2,0 |
2,0 |
3,0 |
3,0 |
3,5 |
| Aluminum thickness (no more), mm |
0,4 |
0,5 |
0,5 |
0,5 |
0,5 |
| Swaging zone diameter, mm |
16,7 |
20,7 |
26,7 |
32,7 |
40,8 |
| А |
В |
D1 |
D2 |
G |
Weight |
| mm |
mm |
mm |
mm |
|
kg/pc |
| 97 |
31 |
26 |
26 |
1/2" |
0,238 |
Download data sheet: Connecting parts for VALTEC pressfitting
|
|
|
VALTEC T-piece with male thread, d - 26х3/4"х26 [Code number: VTm.233.N.260526]
Details
|
VTm.233.N.260526 |
778 rub |
Application purpose:
- For metal-polymer and polymer pipes
- To create permanent connections
- For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other
Characteristics:
- Pressing tool attachment type - TH (according to the REMS catalog)
- Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
- The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
- Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
- O-rings made of EPDM
- Nominal pressure 2.5 MPa
- Working pressure 1.0 MPa
- Maximum temperature of the working environment +115 ºС
- Minimum storage temperature -30 ºС
- Emergency working environment temperature +130 ºС
- Sleeve compression force, not less than 1200 N
- Average full service life 50 years
Allowable pipe parameters:
| Outer pipe diameter, mm |
16 |
20 |
26 |
32 |
40 |
| |
|
|
|
|
|
| Pipe wall thickness, mm |
2,0 |
2,0 |
3,0 |
3,0 |
3,5 |
| Aluminum thickness (no more), mm |
0,4 |
0,5 |
0,5 |
0,5 |
0,5 |
| Swaging zone diameter, mm |
16,7 |
20,7 |
26,7 |
32,7 |
40,8 |
| А |
В |
D1 |
D2 |
G |
Weight |
| mm |
mm |
mm |
mm |
|
kg/pc |
| 97 |
34 |
26 |
26 |
3/4" |
0,214 |
Download data sheet: Connecting parts for VALTEC pressfitting
|
|
|
VALTEC T-piece with male thread, d - 26х1"х26 [Code number: VTm.233.N.260626]
Details
|
VTm.233.N.260626 |
990 rub |
Application purpose:
- For metal-polymer and polymer pipes
- To create permanent connections
- For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other
Characteristics:
- Pressing tool attachment type - TH (according to the REMS catalog)
- Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
- The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
- Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
- O-rings made of EPDM
- Nominal pressure 2.5 MPa
- Working pressure 1.0 MPa
- Maximum temperature of the working environment +115 ºС
- Minimum storage temperature -30 ºС
- Emergency working environment temperature +130 ºС
- Sleeve compression force, not less than 1200 N
- Average full service life 50 years
Allowable pipe parameters:
| Outer pipe diameter, mm |
16 |
20 |
26 |
32 |
40 |
| |
|
|
|
|
|
| Pipe wall thickness, mm |
2,0 |
2,0 |
3,0 |
3,0 |
3,5 |
| Aluminum thickness (no more), mm |
0,4 |
0,5 |
0,5 |
0,5 |
0,5 |
| Swaging zone diameter, mm |
16,7 |
20,7 |
26,7 |
32,7 |
40,8 |
| А |
В |
D1 |
D2 |
G |
Weight |
| mm |
mm |
mm |
mm |
|
kg/pc |
| 97 |
37 |
26 |
26 |
1" |
0,267 |
Download data sheet: Connecting parts for VALTEC pressfitting
|
|
|
VALTEC T-piece with male thread, d - 32х3/4"х32 [Code number: VTm.233.N.320532]
Details
|
VTm.233.N.320532 |
1 191 rub |
Application purpose:
- For metal-polymer and polymer pipes
- To create permanent connections
- For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other
Characteristics:
- Pressing tool attachment type - TH (according to the REMS catalog)
- Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
- The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
- Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
- O-rings made of EPDM
- Nominal pressure 2.5 MPa
- Working pressure 1.0 MPa
- Maximum temperature of the working environment +115 ºС
- Minimum storage temperature -30 ºС
- Emergency working environment temperature +130 ºС
- Sleeve compression force, not less than 1200 N
- Average full service life 50 years
Allowable pipe parameters:
| Outer pipe diameter, mm |
16 |
20 |
26 |
32 |
40 |
| |
|
|
|
|
|
| Pipe wall thickness, mm |
2,0 |
2,0 |
3,0 |
3,0 |
3,5 |
| Aluminum thickness (no more), mm |
0,4 |
0,5 |
0,5 |
0,5 |
0,5 |
| Swaging zone diameter, mm |
16,7 |
20,7 |
26,7 |
32,7 |
40,8 |
| А |
В |
D1 |
D2 |
G |
Weight |
| mm |
mm |
mm |
mm |
|
kg/pc |
| 104 |
35 |
32 |
32 |
3/4" |
0,409 |
Download data sheet: Connecting parts for VALTEC pressfitting
|
|
|
VALTEC T-piece with male thread, d - 32х1"х32 [Code number: VTm.233.N.320632]
Details
|
VTm.233.N.320632 |
1 358 rub |
Application purpose:
- For metal-polymer and polymer pipes
- To create permanent connections
- For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other
Characteristics:
- Pressing tool attachment type - TH (according to the REMS catalog)
- Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
- The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
- Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
- O-rings made of EPDM
- Nominal pressure 2.5 MPa
- Working pressure 1.0 MPa
- Maximum temperature of the working environment +115 ºС
- Minimum storage temperature -30 ºС
- Emergency working environment temperature +130 ºС
- Sleeve compression force, not less than 1200 N
- Average full service life 50 years
Allowable pipe parameters:
| Outer pipe diameter, mm |
16 |
20 |
26 |
32 |
40 |
| |
|
|
|
|
|
| Pipe wall thickness, mm |
2,0 |
2,0 |
3,0 |
3,0 |
3,5 |
| Aluminum thickness (no more), mm |
0,4 |
0,5 |
0,5 |
0,5 |
0,5 |
| Swaging zone diameter, mm |
16,7 |
20,7 |
26,7 |
32,7 |
40,8 |
| А |
В |
D1 |
D2 |
G |
Weight |
| mm |
mm |
mm |
mm |
|
kg/pc |
| 104 |
39 |
32 |
32 |
1" |
0,395 |
Download data sheet: Connecting parts for VALTEC pressfitting
|
|
|

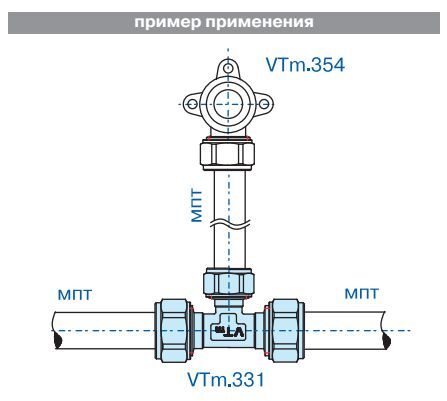

VALTEC T-piece, pressing connection, d - 16 [Code number: VTm.331.N.161616]
Details
|
VTm.331.N.161616 |
423 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 16 |
16 |
16 |
65 |
32 |
0,150 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 16х20х16 [Code number: VTm.331.N.162016]
Details
|
VTm.331.N.162016 |
765 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 20 |
16 |
16 |
65 |
38,5 |
0,201 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 20х16х16 [Code number: VTm.331.N.201616]
Details
|
VTm.331.N.201616 |
783 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 16 |
20 |
16 |
75 |
35,5 |
0,235 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 20х16х20 [Code number: VTm.331.N.201620]
Details
|
VTm.331.N.201620 |
835 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 16 |
20 |
20 |
77 |
35,5 |
0,258 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 20х20х16 [Code number: VTm.331.N.202016]
Details
|
VTm.331.N.202016 |
888 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 20 |
20 |
16 |
75 |
38,5 |
0,270 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 20 [Code number: VTm.331.N.202020]
Details
|
VTm.331.N.202020 |
746 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 20 |
20 |
20 |
77 |
38,5 |
0,284 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 20х26х20 [Code number: VTm.331.N.202620]
Details
|
VTm.331.N.202620 |
1 217 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 26 |
20 |
20 |
81 |
45 |
0,362 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26х16х20 [Code number: VTm.331.N.261620]
Details
|
VTm.331.N.261620 |
1 009 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 16 |
26 |
20 |
82,5 |
35,5 |
0,300 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26х16х26 [Code number: VTm.331.N.261626]
Details
|
VTm.331.N.261626 |
986 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 16 |
26 |
26 |
88 |
41 |
0,350 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26х20х16 [Code number: VTm.331.N.262016]
Details
|
VTm.331.N.262016 |
918 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 20 |
26 |
16 |
82,5 |
35,5 |
0,280 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26х20х20 [Code number: VTm.331.N.262020]
Details
|
VTm.331.N.262020 |
1 121 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 20 |
26 |
20 |
84,5 |
41,5 |
0,343 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26х20х26 [Code number: VTm.331.N.262026]
Details
|
VTm.331.N.262026 |
1 050 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 20 |
26 |
26 |
88,5 |
41,5 |
0,369 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26х26х20 [Code number: VTm.331.N.262620]
Details
|
VTm.331.N.262620 |
1 174 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 26 |
26 |
20 |
85 |
46 |
0,360 |
Download data sheet: VALTEC Compression fittings
|
|
|
VALTEC T-piece, pressing connection, d - 26 [Code number: VTm.331.N.262626]
Details
|
VTm.331.N.262626 |
1 111 rub |
Application purpose:
- For drinking and domestic water supply systems
- For hot water
- For heating
- For connection metal-polymer pipes
Characteristics:
- Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
- EPDM O-rings
- Nominal pressure 25 bar
- Operating pressure 10 bar
- The maximum temperature of working environment is up to +115 ºС
- The minimum temperature of working environment is up to -30 ºС
- Average life of 50 years
| D1 |
D2 |
D3 |
А |
В |
Weight |
| mm |
mm |
mm |
mm |
mm |
kg/pc |
| 26 |
26 |
26 |
88 |
44 |
0,380 |
Download data sheet: VALTEC Compression fittings
|
![Photo VALTEC T-piece with male thread, d - 20х3/4"х20 [Code number: VTm.233.N.200520]](/system/products/photos/000/035/259/original/VTm.233.N.200520-photo.jpg?1548024088)
![Photo VALTEC T-piece with male thread, d - 26х1/2"х26 [Code number: VTm.233.N.260426]](/system/products/photos/000/035/261/original/VTm.233.N.260426-photo.jpg?1548024060)
![Photo VALTEC T-piece with male thread, d - 26х3/4"х26 [Code number: VTm.233.N.260526]](/system/products/photos/000/035/262/original/VTm.233.N.260526-photo.jpg?1548024141)
![Photo VALTEC T-piece with male thread, d - 26х1"х26 [Code number: VTm.233.N.260626]](/system/products/photos/000/035/260/original/VTm.233.N.260626-photo.jpg?1548024063)
![Photo VALTEC T-piece with male thread, d - 32х3/4"х32 [Code number: VTm.233.N.320532]](/system/products/photos/000/035/264/original/VTm.233.N.320532-photo.jpg?1548024089)
![Photo VALTEC T-piece with male thread, d - 32х1"х32 [Code number: VTm.233.N.320632]](/system/products/photos/000/035/263/original/VTm.233.N.320632-photo.jpg?1548024118)
![Photo VALTEC T-piece, pressing connection, d - 16 [Code number: VTm.331.N.161616]](/system/products/photos/000/035/191/original/VTm.331.N.161616-photo.jpg?1548024095)
![Photo VALTEC T-piece, pressing connection, d - 16х20х16 [Code number: VTm.331.N.162016]](/system/products/photos/000/035/192/original/VTm.331.N.162016-photo.jpg?1548024128)
![Photo VALTEC T-piece, pressing connection, d - 20х16х16 [Code number: VTm.331.N.201616]](/system/products/photos/000/035/194/original/VTm.331.N.201616-photo.jpg?1548024087)
![Photo VALTEC T-piece, pressing connection, d - 20х16х20 [Code number: VTm.331.N.201620]](/system/products/photos/000/035/195/original/VTm.331.N.201620-photo.jpg?1548024072)
![Photo VALTEC T-piece, pressing connection, d - 20х20х16 [Code number: VTm.331.N.202016]](/system/products/photos/000/035/196/original/VTm.331.N.202016-photo.jpg?1548024098)
![Photo VALTEC T-piece, pressing connection, d - 20 [Code number: VTm.331.N.202020]](/system/products/photos/000/035/193/original/VTm.331.N.202020-photo.jpg?1548024105)
![Photo VALTEC T-piece, pressing connection, d - 20х26х20 [Code number: VTm.331.N.202620]](/system/products/photos/000/035/197/original/VTm.331.N.202620-photo.jpg?1548024123)
![Photo VALTEC T-piece, pressing connection, d - 26х16х20 [Code number: VTm.331.N.261620]](/system/products/photos/000/035/199/original/VTm.331.N.261620-photo.jpg?1548024096)
![Photo VALTEC T-piece, pressing connection, d - 26х16х26 [Code number: VTm.331.N.261626]](/system/products/photos/000/035/200/original/VTm.331.N.261626-photo.jpg?1548024122)
![Photo VALTEC T-piece, pressing connection, d - 26х20х16 [Code number: VTm.331.N.262016]](/system/products/photos/000/035/201/original/VTm.331.N.262016-photo.jpg?1548024073)
![Photo VALTEC T-piece, pressing connection, d - 26х20х20 [Code number: VTm.331.N.262020]](/system/products/photos/000/035/202/original/VTm.331.N.262020-photo.jpg?1548024127)
![Photo VALTEC T-piece, pressing connection, d - 26х20х26 [Code number: VTm.331.N.262026]](/system/products/photos/000/035/203/original/VTm.331.N.262026-photo.jpg?1548024099)
![Photo VALTEC T-piece, pressing connection, d - 26х26х20 [Code number: VTm.331.N.262620]](/system/products/photos/000/035/204/original/VTm.331.N.262620-photo.jpg?1548024107)
![Photo VALTEC T-piece, pressing connection, d - 26 [Code number: VTm.331.N.262626]](/system/products/photos/000/035/198/original/VTm.331.N.262626-photo.jpg?1548024092)
![Draft VALTEC T-piece with male thread, d - 20х3/4"х20 [Code number: VTm.233.N.200520]](/system/products/drafts/000/035/259/original/VTm.233.N.200520-draft.jpg?1548023468)
![Draft VALTEC T-piece with male thread, d - 26х1/2"х26 [Code number: VTm.233.N.260426]](/system/products/drafts/000/035/261/original/VTm.233.N.260426-draft.jpg?1548023398)
![Draft VALTEC T-piece with male thread, d - 26х3/4"х26 [Code number: VTm.233.N.260526]](/system/products/drafts/000/035/262/original/VTm.233.N.260526-draft.jpg?1548023480)
![Draft VALTEC T-piece with male thread, d - 26х1"х26 [Code number: VTm.233.N.260626]](/system/products/drafts/000/035/260/original/VTm.233.N.260626-draft.jpg?1548023469)
![Draft VALTEC T-piece with male thread, d - 32х3/4"х32 [Code number: VTm.233.N.320532]](/system/products/drafts/000/035/264/original/VTm.233.N.320532-draft.jpg?1548023497)
![Draft VALTEC T-piece with male thread, d - 32х1"х32 [Code number: VTm.233.N.320632]](/system/products/drafts/000/035/263/original/VTm.233.N.320632-draft.jpg?1548023455)
![Draft VALTEC T-piece, pressing connection, d - 16 [Code number: VTm.331.N.161616]](/system/products/drafts/000/035/191/original/VTm.331.N.161616-draft.jpg?1548023516)
![Draft VALTEC T-piece, pressing connection, d - 16х20х16 [Code number: VTm.331.N.162016]](/system/products/drafts/000/035/192/original/VTm.331.N.162016-draft.jpg?1548023442)
![Draft VALTEC T-piece, pressing connection, d - 20х16х16 [Code number: VTm.331.N.201616]](/system/products/drafts/000/035/194/original/VTm.331.N.201616-draft.jpg?1548023450)
![Draft VALTEC T-piece, pressing connection, d - 20х16х20 [Code number: VTm.331.N.201620]](/system/products/drafts/000/035/195/original/VTm.331.N.201620-draft.jpg?1548023391)
![Draft VALTEC T-piece, pressing connection, d - 20х20х16 [Code number: VTm.331.N.202016]](/system/products/drafts/000/035/196/original/VTm.331.N.202016-draft.jpg?1548023420)
![Draft VALTEC T-piece, pressing connection, d - 20 [Code number: VTm.331.N.202020]](/system/products/drafts/000/035/193/original/VTm.331.N.202020-draft.jpg?1548023461)
![Draft VALTEC T-piece, pressing connection, d - 20х26х20 [Code number: VTm.331.N.202620]](/system/products/drafts/000/035/197/original/VTm.331.N.202620-draft.jpg?1548023489)
![Draft VALTEC T-piece, pressing connection, d - 26х16х20 [Code number: VTm.331.N.261620]](/system/products/drafts/000/035/199/original/VTm.331.N.261620-draft.jpg?1548023511)
![Draft VALTEC T-piece, pressing connection, d - 26х16х26 [Code number: VTm.331.N.261626]](/system/products/drafts/000/035/200/original/VTm.331.N.261626-draft.jpg?1548023484)
![Draft VALTEC T-piece, pressing connection, d - 26х20х16 [Code number: VTm.331.N.262016]](/system/products/drafts/000/035/201/original/VTm.331.N.262016-draft.jpg?1548023501)
![Draft VALTEC T-piece, pressing connection, d - 26х20х20 [Code number: VTm.331.N.262020]](/system/products/drafts/000/035/202/original/VTm.331.N.262020-draft.jpg?1548023465)
![Draft VALTEC T-piece, pressing connection, d - 26х20х26 [Code number: VTm.331.N.262026]](/system/products/drafts/000/035/203/original/VTm.331.N.262026-draft.jpg?1548023510)
![Draft VALTEC T-piece, pressing connection, d - 26х26х20 [Code number: VTm.331.N.262620]](/system/products/drafts/000/035/204/original/VTm.331.N.262620-draft.jpg?1548023465)
![Draft VALTEC T-piece, pressing connection, d - 26 [Code number: VTm.331.N.262626]](/system/products/drafts/000/035/198/original/VTm.331.N.262626-draft.jpg?1548023533)
