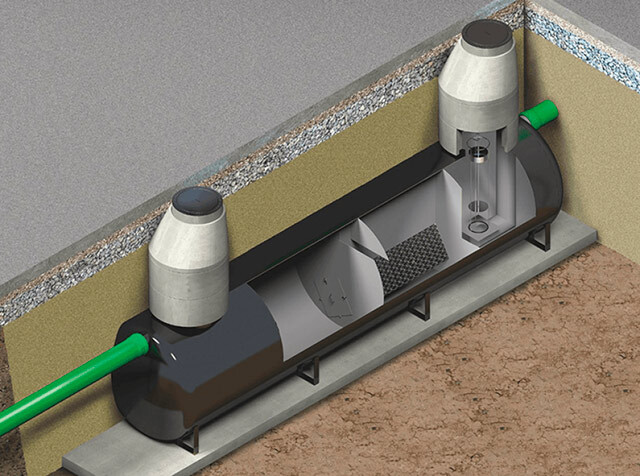

HAURATON Coalescence separators

HAURATON Coalescence separators are made of polyethylene and steel.

Main advantages:

  • compact design;
  • external and internal walls are galvanized or coated with epoxy;
  • inlet and inlet pipes are made of 5 mm steel sheet;
  • compliance with the requirements of standard EN 858/DIN 1999;
  • patented float that can be easily removed;
  • easy to clean;
  • possible embedding of warning systems.
Photo Наименование Article Цена
HAURATON AQUAFIX Coalescence separator SKG 080 with sludge trap, steel, flow performance 80 l/s, 7660x2000x2150 mm, DN 315 [Code number: 181080]
Details
181080

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
7660 2000 2150 3800,00 80 9150 8680 315

Download assembly drawing of the product: 181080 Hauraton AQUAFIX Coalescence separator SKG 080

Download the declaration of conformity: 181080 No.1132

Download the declaration of conformity: 181080 No.1131

HAURATON AQUAFIX Coalescence separator SKGBP 160 with sludge trap and bypass, flow performance 800 l/s, steel, 11500x2900x2650 mm, DN 800 [Code number: 182160]
Details
182160

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
11500 2900 2650 7450,00 800 17780 16150 800

Download assembly drawing of the product: 182160 HAURATON AQUAFIX Coalescence separator SKGBP 160

Download the declaration of conformity: 182160 No.1136

Download the declaration of conformity: 182160 No.1135

HAURATON AQUAFIX Coalescence separator SKG2BP 070 with sludge trap and bypass with increased performance, flow performance 700 l/s, steel, 9100x2600x2150 mm, DN 600 [Code number: 184070]
Details
184070

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
9100 2600 2150 5050,00 700 8460 7900 600

Download assembly drawing of the product: 184070 HAURATON AQUAFIX Coalescence separator SKG2BP 070

Download the declaration of conformity: 184070 No.1133

Download the declaration of conformity: 184070 No.1134

HAURATON AQUAFIX Coalescence separator SKBPk 03/0300 with sludge trap and bypass, separator capacity 426 l, flow performance 15 l/s, 1200x800x1200 mm, DN 160 [Code number: 87803]
Details
87803

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
1200 800 1200 498,00 15 384 426 160

Download assembly drawing of the product: 87803 HAURATON AQUAFIX Coalescence separator SKBPk 03/0300

Download the declaration of conformity: 87803 No.1127

Download the declaration of conformity: 87803 No.1128

HAURATON AQUAFIX Coalescence separator SKBPk 08/0800 with sludge trap and bypass, separator capacity 872 l, flow performance 40 l/s, 2300x1100x1200 mm, DN 315 [Code number: 87808]
Details
87808

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
2300 1100 1200 916,00 40 891 872 315

Download assembly drawing of the product: 87808 HAURATON AQUAFIX Coalescence separator SKBPk 08/0800

Download the declaration of conformity: 87808 No.1127

Download the declaration of conformity: 87808 No.1128

HAURATON AQUAFIX Coalescence separator SKGBP 080 with sludge trap and bypass, flow performance 400 l/s, steel, 8500x2200x2150 mm, DN 500 [Code number: 182080]
Details
182080

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
8500 2200 2150 4500,00 400 8600 9030 500

Download assembly drawing of the product: 182080 HAURATON AQUAFIX Coalescence separator SKGBP 080

Download the declaration of conformity: 182080 No.1136

Download the declaration of conformity: 182080 No.1135

HAURATON AQUAFIX Coalescence separator SKGBP 070 with sludge trap and bypass, flow performance 350 l/s, steel, 8000x2200x2150 mm, DN 500 [Code number: 182070]
Details
182070

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
8000 2200 2150 4250,00 350 8390 7810 500

Download assembly drawing of the product: 182070 HAURATON AQUAFIX Coalescence separator SKGBP 070

Download the declaration of conformity: 182070 No.1136

Download the declaration of conformity: 182070 No.1135

HAURATON AQUAFIX Coalescence separator SKGBP 035 with sludge trap and bypass, flow performance 175 l/s, steel, 6300x1900x1750 mm, DN 400 [Code number: 182035]
Details
182035

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
6300 1900 1750 2750,00 175 3960 4020 400

Download assembly drawing of the product: 182035 HAURATON AQUAFIX Coalescence separator SKGBP 035

Download the declaration of conformity: 182035 No.1136

Download the declaration of conformity: 182035 No.1135

HAURATON AQUAFIX Coalescence separator SKG 015 with sludge trap, steel, flow performance 15 l/s, 3860x1250x1400 mm, DN 200 [Code number: 181015]
Details
181015

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
3860 1250 1400 1400,00 15 1580 1400 200

Download assembly drawing of the product: 181015 Hauraton AQUAFIX Coalescence separator SKG 015

Download the declaration of conformity: 181015 No.1132

Download the declaration of conformity: 181015 No.1131

HAURATON AQUAFIX Coalescence separator SKPE 03/0300 with sludge trap, PE, separator capacity 1227 l, flow performance 3 l/s, 1895x1200x1040 mm, DN 110 [Code number: 384003]
Details
384003

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
1895 1200 1040 128,00 3 300 1227 110

Download assembly drawing of the product: 384003 HAURATON AQUAFIX Coalescence separator SKPE 03/0300

Download the declaration of conformity: 384003 No.1144

HAURATON AQUAFIX Coalescence separator SKBPPE 10/1000 with sludge trap and bypass, PE, separator capacity 2074 l, flow performance 50 l/s, 4505x1200x1040 mm, DN 315 [Code number: 383610]
Details
383610

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
4505 1200 1040 297,00 50 1000 2074 315

Download assembly drawing of the product: 383610 HAURATON AQUAFIX Coalescence separator SKBPPE 10/1000

Download the declaration of conformity: 383610 No.1129

HAURATON AQUAFIX Coalescence separator SKG2BP 055 with sludge trap and bypass with increased performance, flow performance 550 l/s, steel, 7400x2600x2150 mm, DN 600 [Code number: 184055]
Details
184055

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
7400 2600 2150 4500,00 550 6110 6320 600

Download assembly drawing of the product: 184055 HAURATON AQUAFIX Coalescence separator SKG2BP 055

Download the declaration of conformity: 184055 No.1133

Download the declaration of conformity: 184055 No.1134

HAURATON AQUAFIX Coalescence separator SKG2BP 080 with sludge trap and bypass with increased performance, flow performance 800 l/s, steel, 11900x2900x2150 mm, DN 800 [Code number: 184080]
Details
184080

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
11900 2900 2150 6400,00 800 8850 9330 800

Download assembly drawing of the product: 184080 HAURATON AQUAFIX Coalescence separator SKG2BP 080

Download the declaration of conformity: 184080 No.1133

Download the declaration of conformity: 184080 No.1134

HAURATON AQUAFIX Coalescence separator SKGBP 020 with sludge trap and bypass, flow performance 100 l/s, steel, 5825x1500x1400 mm, DN 315 [Code number: 182020]
Details
182020

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
5825 1500 1400 1900,00 100 2300 2080 315

Download assembly drawing of the product: 182020 HAURATON AQUAFIX Coalescence separator SKGBP 020

Download the declaration of conformity: 182020 No.1136

Download the declaration of conformity: 182020 No.1135

HAURATON AQUAFIX Coalescence separator KPE 15, PE, separator capacity 2650 l, flow performance 15 l/s, 3515x1200x1040 mm, DN 200 [Code number: 383515]
Details
383515

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated
Length Width Height Weight Flow performance separator capacity DN in-/outlet
mm mm mm kg l/s l mm
3515 1200 1040 241,00 15 2650 200

Download assembly drawing of the product: 383515 HAURATON AQUAFIX Coalescence separator KPE 15

Download the declaration of conformity: 383515 No.1100

HAURATON AQUAFIX Coalescence separator SKG2BP 015 with sludge trap and bypass with increased performance, flow performance 150 l/s, steel, 5000x1700x1400 mm, DN 400 [Code number: 184015]
Details
184015

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
5000 1700 1400 2300,00 150 1510 1740 400

Download assembly drawing of the product: 184015 HAURATON AQUAFIX Coalescence separator SKG2BP 015

Download the declaration of conformity: 184015 No.1133

Download the declaration of conformity: 184015 No.1134

HAURATON AQUAFIX Coalescence separator SKPP 10/2500 with sludge trap, PP, separator capacity 1084 l, flow performance 10 l/s, 1500x1500x3074 mm, DN 160 [Code number: 284110]
Details
284110
HAURATON AQUAFIX Coalescence separator SKG 065 with sludge trap, steel, flow performance 65 l/s, 6350x2000x2150 mm, DN 315 [Code number: 181065]
Details
181065

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
6350 2000 2150 3300,00 65 7380 6870 315

Download assembly drawing of the product: 181065 Hauraton AQUAFIX Coalescence separator SKG 065

Download the declaration of conformity: 181065 No.1132

Download the declaration of conformity: 181065 No.1131

HAURATON AQUAFIX Coalescence separator SKGBP 060 with sludge trap and bypass, flow performance 300 l/s, steel, 6300x2200x2150 mm, DN 500 [Code number: 182060]
Details
182060

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
6300 2200 2150 3600,00 300 5920 6220 500

Download assembly drawing of the product: 182060 HAURATON AQUAFIX Coalescence separator SKGBP 060

Download the declaration of conformity: 182060 No.1136

Download the declaration of conformity: 182060 No.1135

HAURATON AQUAFIX Coalescence separator SKPE 15/1500 with sludge trap, PE, separator capacity 2359 l, flow performance 15 l/s, 4915x1200x1040 mm, DN 200 [Code number: 384015]
Details
384015

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
4915 1200 1040 301,00 15 1500 2359 200

Download assembly drawing of the product: 384015 HAURATON AQUAFIX Coalescence separator SKPE 15/1500

Download the declaration of conformity: 384015 No.1144

HAURATON AQUAFIX Coalescence separator SKG 040 with sludge trap, steel, flow performance 40 l/s, 6020x1600x1750 mm, DN 200 [Code number: 181040]
Details
181040

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
6020 1600 1750 2250,00 40 4710 4200 200

Download assembly drawing of the product: 181040 Hauraton AQUAFIX Coalescence separator SKG 040

Download the declaration of conformity: 181040 No.1132

Download the declaration of conformity: 181040 No.1131

HAURATON AQUAFIX Coalescence separator SKG 170 with sludge trap, steel, flow performance 170 l/s, 9740x2500x2650 mm, DN 400 [Code number: 181170]
Details
181170

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
9740 2500 2650 5165,00 170 18100 18530 400

Download assembly drawing of the product: 181170 Hauraton AQUAFIX Coalescence separator SKG 170

Download the declaration of conformity: 181170 No.1132

Download the declaration of conformity: 181170 No.1131

HAURATON AQUAFIX Coalescence separator SKG 090 with sludge trap, steel, flow performance 90 l/s, 8240x2000x2150 mm, DN 315 [Code number: 181090]
Details
181090

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
8240 2000 2150 4000,00 90 10260 9160 315

Download assembly drawing of the product: 181090 Hauraton AQUAFIX Coalescence separator SKG 090

Download the declaration of conformity: 181090 No.1132

Download the declaration of conformity: 181090 No.1131

HAURATON AQUAFIX Coalescence separator SKG2BP 200 with sludge trap and bypass with increased performance, flow performance 2000 l/s, steel, 11800x3900x3050 mm, DN 1000 [Code number: 184200]
Details
184200

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
11800 3900 3050 10800,00 2000 20640 19120 1000

Download assembly drawing of the product: 184200 HAURATON AQUAFIX Coalescence separator SKG2BP 200

Download the declaration of conformity: 184200 No.1133

Download the declaration of conformity: 184200 No.1134

HAURATON AQUAFIX Coalescence separator SKG 140 with sludge trap, steel, flow performance 140 l/s, 8440x2500x2650 mm, DN 400 [Code number: 181140]
Details
181140

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
8440 2500 2650 4584,00 140 14220 16840 400

Download assembly drawing of the product: 181140 Hauraton AQUAFIX Coalescence separator SKG 140

Download the declaration of conformity: 181140 No.1132

Download the declaration of conformity: 181140 No.1131

HAURATON AQUAFIX Coalescence separator SKGBP 050 with sludge trap and bypass, flow performance 250 l/s, steel, 6000x2200x2150 mm, DN 500 [Code number: 182050]
Details
182050

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
6000 2200 2150 3300,00 250 5690 5490 500

Download assembly drawing of the product: 182050 HAURATON AQUAFIX Coalescence separator SKGBP 050

Download the declaration of conformity: 182050 No.1136

Download the declaration of conformity: 182050 No.1135

HAURATON AQUAFIX Coalescence separator SKPE 08/0800 with sludge trap, PE, separator capacity 1571 l, flow performance 8 l/s, 2910x1200x1040 mm, DN 160 [Code number: 384008]
Details
384008

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
2910 1200 1040 188,00 8 800 1571 160

Download assembly drawing of the product: 384008 HAURATON AQUAFIX Coalescence separator SKPE 08/0800

Download the declaration of conformity: 384008 No.1144

HAURATON AQUAFIX Coalescence separator SKPE 10/1000 with sludge trap, PE, separator capacity 2565 l, flow performance 10 l/s, 4255x1200x1040 mm, DN 160 [Code number: 384010]
Details
384010

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
4255 1200 1040 280,00 10 1000 2565 160

Download assembly drawing of the product: 384010 HAURATON AQUAFIX Coalescence separator SKPE 10/1000

Download the declaration of conformity: 384010 No.1144

HAURATON AQUAFIX Coalescence separator SKGBP 065 with sludge trap and bypass, flow performance 325 l/s, steel, 7200x2200x2150 mm, DN 500 [Code number: 182065]
Details
182065

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
7200 2200 2150 4050,00 325 7460 6950 500

Download assembly drawing of the product: 182065 HAURATON AQUAFIX Coalescence separator SKGBP 065

Download the declaration of conformity: 182065 No.1136

Download the declaration of conformity: 182065 No.1135

HAURATON AQUAFIX Coalescence separator SKG 030 with sludge trap, steel, flow performance 30 l/s, 5200x1600x1750 mm, DN 200 [Code number: 181030]
Details
181030

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
5200 1600 1750 1950,00 30 3620 3820 200

Download assembly drawing of the product: 181030 Hauraton AQUAFIX Coalescence separator SKG 030

Download the declaration of conformity: 181030 No.1132

Download the declaration of conformity: 181030 No.1131

HAURATON AQUAFIX Coalescence separator SKGBP 170 with sludge trap and bypass, flow performance 850 l/s, steel, 12000x2900x2650 mm, DN 800 [Code number: 182170]
Details
182170

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
12000 2900 2650 7650,00 850 19020 17010 800

Download assembly drawing of the product: 182170 HAURATON AQUAFIX Coalescence separator SKGBP 170

Download the declaration of conformity: 182170 No.1136

Download the declaration of conformity: 182170 No.1135

HAURATON AQUAFIX Coalescence separator SKBPPE 06/0600 with sludge trap and bypass, PE, separator capacity 1315 l, flow performance 30 l/s, 2910x1200x1040 mm, DN 315 [Code number: 383606]
Details
383606

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
2910 1200 1040 203,00 30 600 1315 315

Download assembly drawing of the product: 383606 HAURATON AQUAFIX Coalescence separator SKBPPE 06/0600

Download the declaration of conformity: 383606 No.1129

HAURATON AQUAFIX Coalescence separator SKGBP 100 with sludge trap and bypass, flow performance 500 l/s, steel, 7300x2800x2650 mm, DN 600 [Code number: 182100]
Details
182100

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
7300 2800 2650 5600,00 500 10010 12510 600

Download assembly drawing of the product: 182100 HAURATON AQUAFIX Coalescence separator SKGBP 100

Download the declaration of conformity: 182100 No.1136

Download the declaration of conformity: 182100 No.1135

HAURATON AQUAFIX Coalescence separator SKBPPP 15/075 with sludge trap and bypass, PP, separator capacity 4023 l, flow performance 75 l/s, 2500x2500x2674 mm, DN 400 [Code number: 283615]
Details
283615
HAURATON AQUAFIX Coalescence separator SKG2BP 035 with sludge trap and bypass with increased performance, flow performance 350 l/s, steel, 7100x2100x1750 mm, DN 500 [Code number: 184035]
Details
184035

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
7100 2100 1750 3300,00 350 4050 4060 500

Download assembly drawing of the product: 184035 HAURATON AQUAFIX Coalescence separator SKG2BP 035

Download the declaration of conformity: 184035 No.1133

Download the declaration of conformity: 184035 No.1134

HAURATON AQUAFIX Coalescence separator SKGBP 150 with sludge trap and bypass, flow performance 750 l/s, steel, 11000x2900x2650 mm, DN 800 [Code number: 182150]
Details
182150

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
11000 2900 2650 6900,00 750 16710 15120 800

Download assembly drawing of the product: 182150 HAURATON AQUAFIX Coalescence separator SKGBP 150

Download the declaration of conformity: 182150 No.1136

Download the declaration of conformity: 182150 No.1135

HAURATON AQUAFIX Coalescence separator SKG2BP 040 with sludge trap and bypass with increased performance, flow performance 300 l/s, steel, 8200x2100x1750 mm, DN 400 [Code number: 184040]
Details
184040

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
8200 2100 1750 3750,00 400 4860 4760 500

Download assembly drawing of the product: 184040 HAURATON AQUAFIX Coalescence separator SKG2BP 040

Download the declaration of conformity: 184040 No.1133

Download the declaration of conformity: 184040 No.1134

HAURATON AQUAFIX Coalescence separator SKGBP 130 with sludge trap and bypass, flow performance 650 l/s, steel, 9600x2800x2650 mm, DN 800 [Code number: 182130]
Details
182130

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
9600 2800 2650 6300,00 650 14580 13400 800

Download assembly drawing of the product: 182130 HAURATON AQUAFIX Coalescence separator SKGBP 130

Download the declaration of conformity: 182130 No.1136

Download the declaration of conformity: 182130 No.1135

HAURATON AQUAFIX Coalescence separator SKG 130 with sludge trap, steel, flow performance 130 l/s, 8100x2500x2650 mm, DN 400 [Code number: 181130]
Details
181130

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
8100 2500 2650 4431,00 130 13520 16000 400

Download assembly drawing of the product: 181130 Hauraton AQUAFIX Coalescence separator SKG 130

Download the declaration of conformity: 181130 No.1132

Download the declaration of conformity: 181130 No.1131

HAURATON AQUAFIX Coalescence separator SKG 045 with sludge trap, steel, flow performance 45 l/s, 5150x2000x2150 mm, DN 315 [Code number: 181045]
Details
181045

Application purposes:

  • For enterprises whose surfaces or waste water are heavily contaminated and must be re-treated

System in detail

Length Width Height Weight Flow performance sludge trap capacity separator capacity DN in-/outlet
mm mm mm kg l/s l l mm
5150 2000 2150 2356,00 45 4850 6090 315

Download assembly drawing of the product: 181045 Hauraton AQUAFIX Coalescence separator SKG 045

Download the declaration of conformity: 181045 No.1132

Download the declaration of conformity: 181045 No.1131

See also
