Valtec brass adapter unions for multilayer pipes

Home→ Catalog→ VALTEC→ Multilayer systems→ Adapter unions

Valtec adapter unions are connecting elements which are used when the installation of multilayer piping systems.

The group of products includes the following types of fittings:

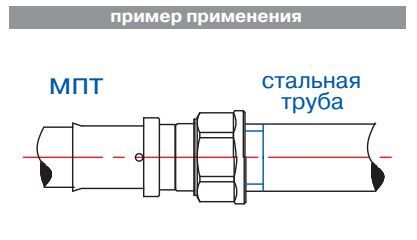

  • Straight adapter unions with male or female thread - the thread corresponds to the state standards.

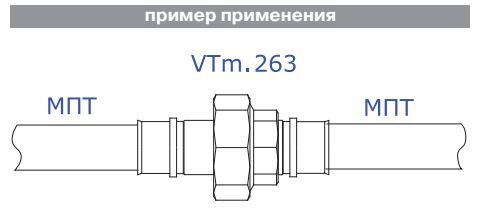

  • Straight adapter unions.

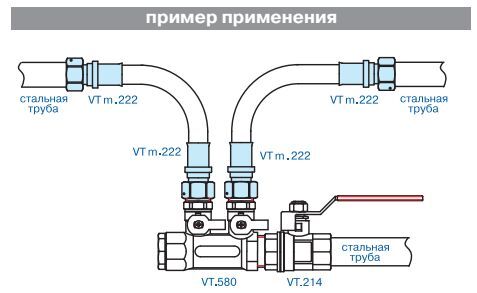

  • Adapters with union nut.

All adapter unions are made of high quality brass. They can be equipped with a sealing ring of EPDM.

Maximum working pressure is 10 bar.

Photo Наименование Article Цена
Photo Draft
Photo VALTEC Adapter union with female thread, d - 16х1/2" [Code number: VTm.202.N.001604] Draft VALTEC Adapter union with female thread, d - 16х1/2" [Code number: VTm.202.N.001604]
VALTEC Adapter union with female thread, d - 16х1/2" [Code number: VTm.202.N.001604]
Details 		VTm.202.N.001604 212 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
44 16 16 1/2" 0,055

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 16х3/4" [Code number: VTm.202.N.001605] Draft VALTEC Adapter union with female thread, d - 16х3/4" [Code number: VTm.202.N.001605]
VALTEC Adapter union with female thread, d - 16х3/4" [Code number: VTm.202.N.001605]
Details 		VTm.202.N.001605 271 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
45 18 16 3/4" 0,072

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 20х1/2" [Code number: VTm.202.N.002004] Draft VALTEC Adapter union with female thread, d - 20х1/2" [Code number: VTm.202.N.002004]
VALTEC Adapter union with female thread, d - 20х1/2" [Code number: VTm.202.N.002004]
Details 		VTm.202.N.002004 241 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
44 18 20 1/2" 0,063

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 20х3/4" [Code number: VTm.202.N.002005] Draft VALTEC Adapter union with female thread, d - 20х3/4" [Code number: VTm.202.N.002005]
VALTEC Adapter union with female thread, d - 20х3/4" [Code number: VTm.202.N.002005]
Details 		VTm.202.N.002005 319 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
46 18 20 3/4" 0,078

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 26х3/4" [Code number: VTm.202.N.002605] Draft VALTEC Adapter union with female thread, d - 26х3/4" [Code number: VTm.202.N.002605]
VALTEC Adapter union with female thread, d - 26х3/4" [Code number: VTm.202.N.002605]
Details 		VTm.202.N.002605 368 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
46 20 26 3/4" 0,089

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 26х1" [Code number: VTm.202.N.002606] Draft VALTEC Adapter union with female thread, d - 26х1" [Code number: VTm.202.N.002606]
VALTEC Adapter union with female thread, d - 26х1" [Code number: VTm.202.N.002606]
Details 		VTm.202.N.002606 461 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
48 24 26 1" 0,115

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 32х1" [Code number: VTm.202.N.003206] Draft VALTEC Adapter union with female thread, d - 32х1" [Code number: VTm.202.N.003206]
VALTEC Adapter union with female thread, d - 32х1" [Code number: VTm.202.N.003206]
Details 		VTm.202.N.003206 550 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
49 25 32 1" 0,129

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with female thread, d - 32х1 1/4" [Code number: VTm.202.N.003207] Draft VALTEC Adapter union with female thread, d - 32х1 1/4" [Code number: VTm.202.N.003207]
VALTEC Adapter union with female thread, d - 32х1 1/4" [Code number: VTm.202.N.003207]
Details 		VTm.202.N.003207 992 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А В D G Weight
mm mm mm   kg/pc
53 28 32 1 1/4" 0,236

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with union nut, d - 16х1/2" [Code number: VTm.222.N.001604] Draft VALTEC Adapter union with union nut, d - 16х1/2" [Code number: VTm.222.N.001604]
VALTEC Adapter union with union nut, d - 16х1/2" [Code number: VTm.222.N.001604]
Details 		VTm.222.N.001604 222 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D G Weight
mm mm   kg/pc
45 16 1/2" 0,055

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Press connector with union nut, d - 20, d1 - 1/2" [Code number: VTm.222.N.002004] Draft VALTEC Press connector with union nut, d - 20, d1 - 1/2" [Code number: VTm.222.N.002004]
VALTEC Press connector with union nut, d - 20, d1 - 1/2" [Code number: VTm.222.N.002004]
Details 		VTm.222.N.002004 356 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D G Weight
mm mm   kg/pc
47 20 1/2" 0,085

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with union nut, d - 20х3/4" [Code number: VTm.222.N.002005] Draft VALTEC Adapter union with union nut, d - 20х3/4" [Code number: VTm.222.N.002005]
VALTEC Adapter union with union nut, d - 20х3/4" [Code number: VTm.222.N.002005]
Details 		VTm.222.N.002005 526 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D G Weight
mm mm   kg/pc
52 20 3/4" 0,109

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with union nut, d - 26х1" [Code number: VTm.222.N.002606] Draft VALTEC Adapter union with union nut, d - 26х1" [Code number: VTm.222.N.002606]
VALTEC Adapter union with union nut, d - 26х1" [Code number: VTm.222.N.002606]
Details 		VTm.222.N.002606 669 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D G Weight
mm mm   kg/pc
55 26 1" 0,138

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC (MINKOR) Adapter union with union nut, d - 32х1 1/4" [Code number: VTm.222.N.003207] Draft VALTEC (MINKOR) Adapter union with union nut, d - 32х1 1/4" [Code number: VTm.222.N.003207]
VALTEC (MINKOR) Adapter union with union nut, d - 32х1 1/4" [Code number: VTm.222.N.003207]
Details 		VTm.222.N.003207 775 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D G Weight
mm mm   kg/pc
57 32 1 1/4" 0,184

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union, straight, d - 20 [Code number: VTm.263.N.002020] Draft VALTEC Adapter union, straight, d - 20 [Code number: VTm.263.N.002020]
VALTEC Adapter union, straight, d - 20 [Code number: VTm.263.N.002020]
Details 		VTm.263.N.002020 600 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D Weight
mm mm kg/pc
126 20 0,129

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union, straight, d - 26 [Code number: VTm.263.N.002626] Draft VALTEC Adapter union, straight, d - 26 [Code number: VTm.263.N.002626]
VALTEC Adapter union, straight, d - 26 [Code number: VTm.263.N.002626]
Details 		VTm.263.N.002626 927 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D Weight
mm mm kg/pc
128 26 0,212

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union, straight, d - 32 [Code number: VTm.263.N.003232] Draft VALTEC Adapter union, straight, d - 32 [Code number: VTm.263.N.003232]
VALTEC Adapter union, straight, d - 32 [Code number: VTm.263.N.003232]
Details 		VTm.263.N.003232 1 536 rub

Application purpose:

  • For metal-polymer and polymer pipes
  • To create permanent connections
  • For connecting a polypropylene pipeline and an engineering system component with a threaded connection at an angle of 90° to each other

Characteristics:

  • Pressing tool attachment type - TH (according to the REMS catalog)
  • Thread type on adapter connectors - pipe thread, according to GOST 6357-81, accuracy class "B"
  • The material of the press fitting body is made of hot-stamped (GOSH) nickel-plated brass of the CW617N brand according to EN 12165 (corresponds to the LS 59-2 brand according to GOST 15527-2004)
  • Press sleeve made of stainless steel AISI 304 (corresponds to grade 08X18H9 in accordance with GOST 5632-2014)
  • O-rings made of EPDM
  • Nominal pressure 2.5 MPa
  • Working pressure 1.0 MPa
  • Maximum temperature of the working environment +115 ºС
  • Minimum storage temperature -30 ºС
  • Emergency working environment temperature +130 ºС
  • Sleeve compression force, not less than 1200 N
  • Average full service life 50 years

Allowable pipe parameters:

Outer pipe diameter, mm 16 20 26 32 40

Pipe wall thickness, mm 2,0 2,0 3,0 3,0 3,5
Aluminum thickness (no more), mm 0,4 0,5 0,5 0,5 0,5
Swaging zone diameter, mm 16,7 20,7 26,7 32,7 40,8



А D Weight
mm mm kg/pc
130 32 0,350

Download data sheet: Connecting parts for VALTEC pressfitting
Photo Draft
Photo VALTEC Adapter union with male thread, d - 16х1/2 [Code number: VTm.301.N.001604] Draft VALTEC Adapter union with male thread, d - 16х1/2 [Code number: VTm.301.N.001604]
VALTEC Adapter union with male thread, d - 16х1/2 [Code number: VTm.301.N.001604]
Details 		VTm.301.N.001604 203 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • To create pressing pipe joints from metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years
D1 D2 А Weight
mm mm mm kg/pc
1/2" 16 38 0,064

Download data sheet: VALTEC Compression fittings
Photo Draft
Photo VALTEC Adapter union with male thread, d - 16х3/4" [Code number: VTm.301.N.001605] Draft VALTEC Adapter union with male thread, d - 16х3/4" [Code number: VTm.301.N.001605]
VALTEC Adapter union with male thread, d - 16х3/4" [Code number: VTm.301.N.001605]
Details 		VTm.301.N.001605 260 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • To create pressing pipe joints from metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years
D1 D2 А Weight
mm mm mm kg/pc
3/4" 16 39 0,077

Download data sheet: VALTEC Compression fittings
Photo Draft
Photo VALTEC Adapter union with male thread, d - 20х1/2" [Code number: VTm.301.N.002004] Draft VALTEC Adapter union with male thread, d - 20х1/2" [Code number: VTm.301.N.002004]
VALTEC Adapter union with male thread, d - 20х1/2" [Code number: VTm.301.N.002004]
Details 		VTm.301.N.002004 326 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • To create pressing pipe joints from metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years
D1 D2 А Weight
mm mm mm kg/pc
1/2" 20 40 0,111

Download data sheet: VALTEC Compression fittings
Photo Draft
Photo VALTEC Adapter union with male thread, d - 20х3/4" [Code number: VTm.301.N.002005] Draft VALTEC Adapter union with male thread, d - 20х3/4" [Code number: VTm.301.N.002005]
VALTEC Adapter union with male thread, d - 20х3/4" [Code number: VTm.301.N.002005]
Details 		VTm.301.N.002005 329 rub

Application purpose:

  • For drinking and domestic water supply systems
  • For hot water
  • For heating
  • To create pressing pipe joints from metal-polymer pipes

Characteristics:

  • Housing made of hot stamped (GOSH) nickel-plated brass grade CW617N to EN 12165
  • EPDM O-rings
  • Male thread in accordance with GOST 6357
  • Nominal pressure 25 bar
  • Operating pressure 10 bar
  • The maximum temperature of working environment is up to +115 ºС
  • The minimum temperature of working environment is up to -30 ºС
  • Average life of 50 years
D1 D2 А Weight
mm mm mm kg/pc
3/4" 20 42 0,110

Download data sheet: VALTEC Compression fittings

See also

PP-adapter Konfix etc.
Strengthen connecting elements
Connecting elements
© Inrusstrade.ru 1999-2025. "Inrusstrade" Ltd. Copying and quoting is prohibited
