OGNEZA-PM fire collars

"OGNEZA-PM" fire collars are designed to protect the premises from fire and smoke during fires.

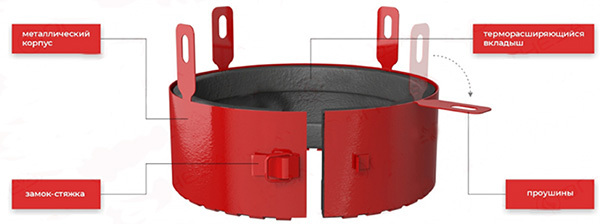

The fire collar consists of a metal case and a polymer liner.

  • The housing of the fire collar is made of cold-rolled or galvanized steel with a thickness of 0.5 to 2 mm. Steel is painted with weather resistant paint.
  • The lock is made of galvanized steel and is coated with paint in the color of the collar.
  • There are inward-curved teeth which hold the fire-retardant liner inside the housing as well as provide its directional expansion.
  • Fastening lugs easy to bend. The length of mounting lugs is 35 mm, there are models with elongated lugs (70 mm) for pipes which are mounted in metal sleeves that are used in monolithic construction.
  • The main working component of the fire collar is a flame retardant heat-expanding tape liner. It is made of thermally expanding material OGNEZA-TPM developed by the Ogneza company and based on rubber and graphite. The liner is plastic, odorless, neutral to water, non-toxic. It keeps properties for 30 years.
Photo Name Article Price
OGNEZA PM Fire prevention symmetrical sleeve, red, d 50, d1 250 (price on request) [Code number: 1r0053]
Details
1r0053

Application purpose:

  • For pipeline communications made of combustible plastic materials (PP, PE, PVC)
  • For residential (including multi-apartment) buildings, hotels and hostels, social and medical institutions, shopping centers, airports and railway stations, industrial enterprises, etc
  • To protect premises from fire and smoke

Characteristics:

  • It is an elongated fire sleeve equipped with two liners made of thermally expandable material (one on each side);
  • Provides double fire protection - just one sleeve is enough for the length of the entire ceiling;
  • The body is detachable, there is a tie-lock, so that the symmetrical fire coupling can be used on already installed pipelines;
  • Metal parts are powder coated for corrosion protection;
  • The clutch begins to work already at the 15th second when the temperature rises to +150 ° C, the complete overlap of the assembly occurs at the fourth minute;
  • Swelling ratio: not less than 900%;
  • Product color: red;
  • Fire resistance limit: 180 minutes;
  • Service life: 30 years.

Operating principle:

During a fire, the thermally expanding liner of the fire muff expands tenfold, resulting in the formation of a solid foam-coke foam that fills the hole in the ceiling. This is quite effective at blocking fire.

Size Outside diameter Through Hole Diameter (minimum) Inner diameter Length Insert thickness
  mm mm mm mm mm
PM-50 59 62 40, 50 250 4+(4)
OGNEZA PM Fire prevention symmetrical sleeve, red, d 50, d1 300 (price on request) [Code number: 1r0054]
Details
1r0054

Application purpose:

  • For pipeline communications made of combustible plastic materials (PP, PE, PVC)
  • For residential (including multi-apartment) buildings, hotels and hostels, social and medical institutions, shopping centers, airports and railway stations, industrial enterprises, etc
  • To protect premises from fire and smoke

Characteristics:

  • It is an elongated fire sleeve equipped with two liners made of thermally expandable material (one on each side);
  • Provides double fire protection - just one sleeve is enough for the length of the entire ceiling;
  • The body is detachable, there is a tie-lock, so that the symmetrical fire coupling can be used on already installed pipelines;
  • Metal parts are powder coated for corrosion protection;
  • The clutch begins to work already at the 15th second when the temperature rises to +150 ° C, the complete overlap of the assembly occurs at the fourth minute;
  • Swelling ratio: not less than 900%;
  • Product color: red;
  • Fire resistance limit: 180 minutes;
  • Service life: 30 years.

Operating principle:

During a fire, the thermally expanding liner of the fire muff expands tenfold, resulting in the formation of a solid foam-coke foam that fills the hole in the ceiling. This is quite effective at blocking fire.

Size Outside diameter Through Hole Diameter (minimum) Inner diameter Length Insert thickness
  mm mm mm mm mm
PM-50 59 62 40, 50 300 4+(4)
OGNEZA PM Fire prevention sleeve, lock type "Light", red, d 125 [Code number: 1r0055]
Details
1r0055 1 048 rub

Application purpose:

  • For pipeline communications made of combustible plastic materials (PP, PE, PVC)
  • For residential (including multi-apartment) buildings, hotels and hostels, social and medical institutions, shopping centers, airports and railway stations, industrial enterprises, etc
  • To protect premises from fire and smoke

Characteristics:

  • The case is detachable, there is a tie-lock, so that the fire coupling can be used on already installed pipelines;
  • Metal parts are powder coated for corrosion protection;
  • Swelling ratio: not less than 900%;
  • Product color: red;
  • Lock type: Light;
  • Fire resistance limit: 180 minutes;
  • Service life: 30 years.

Operating principle:

During a fire, the thermally expanding liner of the fire muff expands tenfold, resulting in the formation of a solid foam-coke foam that fills the hole in the ceiling. This is quite effective at blocking fire.

Installation method

PM structure



  • The case is a metal cuff and is made of cold-rolled or galvanized steel (thickness from 0.5 to 2 mm). Painted with weatherproof paint.
  • The case is connected using a reliable Russian-made latch made of galvanized steel.
  • The fire-retardant liner is located inside the coupling, held by the cloves bent inward. They also provide directional expansion of the fire retardant liner during a fire.
  • The eyelets with holes can be easily bent. Their length is 35 mm, which simplifies installation.
Size Inner diameter Height Outside diameter Insert thickness Weight
  mm mm mm mm kg
PM-125 125 50 145 7 0,355

Download installation instruction: OGNEZA Fire collar OGNEZA Fire collar

OGNEZA PM Fire prevention sleeve, lock type "Light", red, d 16 [Code number: 1r0056]
Details
1r0056 308 rub

Application purpose:

  • For pipeline communications made of combustible plastic materials (PP, PE, PVC)
  • For residential (including multi-apartment) buildings, hotels and hostels, social and medical institutions, shopping centers, airports and railway stations, industrial enterprises, etc
  • To protect premises from fire and smoke

Characteristics:

  • The case is detachable, there is a tie-lock, so that the fire coupling can be used on already installed pipelines;
  • Metal parts are powder coated for corrosion protection;
  • Swelling ratio: not less than 900%;
  • Product color: red;
  • Lock type: Light;
  • Fire resistance limit: 180 minutes;
  • Service life: 30 years.

Operating principle:

During a fire, the thermally expanding liner of the fire muff expands tenfold, resulting in the formation of a solid foam-coke foam that fills the hole in the ceiling. This is quite effective at blocking fire.

Installation method

PM structure



  • The case is a metal cuff and is made of cold-rolled or galvanized steel (thickness from 0.5 to 2 mm). Painted with weatherproof paint.
  • The case is connected using a reliable Russian-made latch made of galvanized steel.
  • The fire-retardant liner is located inside the coupling, held by the cloves bent inward. They also provide directional expansion of the fire retardant liner during a fire.
  • The eyelets with holes can be easily bent. Their length is 35 mm, which simplifies installation.
Size Inner diameter Height Outside diameter Insert thickness Weight
  mm mm mm mm kg
PM-16 16 50 29 4 0,055

Download installation instruction: OGNEZA Fire collar OGNEZA Fire collar

OGNEZA PM Fire prevention sleeve, lock type "Light", red, d 20 [Code number: 1r0057]
Details
1r0057 308 rub

Application purpose:

  • For pipeline communications made of combustible plastic materials (PP, PE, PVC)
  • For residential (including multi-apartment) buildings, hotels and hostels, social and medical institutions, shopping centers, airports and railway stations, industrial enterprises, etc
  • To protect premises from fire and smoke

Characteristics:

  • The case is detachable, there is a tie-lock, so that the fire coupling can be used on already installed pipelines;
  • Metal parts are powder coated for corrosion protection;
  • Swelling ratio: not less than 900%;
  • Product color: red;
  • Lock type: Light;
  • Fire resistance limit: 180 minutes;
  • Service life: 30 years.

Operating principle:

During a fire, the thermally expanding liner of the fire muff expands tenfold, resulting in the formation of a solid foam-coke foam that fills the hole in the ceiling. This is quite effective at blocking fire.

Installation method

PM structure



  • The case is a metal cuff and is made of cold-rolled or galvanized steel (thickness from 0.5 to 2 mm). Painted with weatherproof paint.
  • The case is connected using a reliable Russian-made latch made of galvanized steel.
  • The fire-retardant liner is located inside the coupling, held by the cloves bent inward. They also provide directional expansion of the fire retardant liner during a fire.
  • The eyelets with holes can be easily bent. Their length is 35 mm, which simplifies installation.
Size Inner diameter Height Outside diameter Insert thickness Weight
  mm mm mm mm kg
PM-20 20 50 33 4 0,055

Download installation instruction: OGNEZA Fire collar OGNEZA Fire collar

OGNEZA PM Fire prevention sleeve, lock type "Light", gray, d 160 [Code number: 1r0058]
Details
1r0058 1 800 rub

Application purpose:

  • For pipeline communications made of combustible plastic materials (PP, PE, PVC)
  • For residential (including multi-apartment) buildings, hotels and hostels, social and medical institutions, shopping centers, airports and railway stations, industrial enterprises, etc
  • To protect premises from fire and smoke

Characteristics:

  • The case is detachable, there is a tie-lock, so that the fire coupling can be used on already installed pipelines;
  • Metal parts are powder coated for corrosion protection;
  • Swelling ratio: not less than 900%;
  • Product color: gray;
  • Lock type: Light;
  • Fire resistance limit: 180 minutes;
  • Service life: 30 years.

Operating principle:

During a fire, the thermally expanding liner of the fire muff expands tenfold, resulting in the formation of a solid foam-coke foam that fills the hole in the ceiling. This is quite effective at blocking fire.

Installation method

PM structure



  • The case is a metal cuff and is made of cold-rolled or galvanized steel (thickness from 0.5 to 2 mm). Painted with weatherproof paint.
  • The case is connected using a reliable Russian-made latch made of galvanized steel.
  • The fire-retardant liner is located inside the coupling, held by the cloves bent inward. They also provide directional expansion of the fire retardant liner during a fire.
  • The eyelets with holes can be easily bent. Their length is 35 mm, which simplifies installation.
Size Inner diameter Height Outside diameter Insert thickness Weight
  mm mm mm mm kg
PM-160 160 90 195 15 0,900

Download installation instruction: OGNEZA Fire collar OGNEZA Fire collar

OGNEZA-PM-K Cable penetration, gray, d 110 (price on request) [Code number: 1r0112]
Details
1r0112

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-110 110 32 30 4 80/100
OGNEZA-PM-K Cable penetration, gray, d 125 (price on request) [Code number: 1r0113]
Details
1r0113

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-125 125 32 30 7 200
OGNEZA-PM-K Cable penetration, gray, d 40/20 (price on request) [Code number: 1r0114]
Details
1r0114

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-20/40 20-40 32 30 2/- 55
OGNEZA-PM-K Cable penetration, gray, d 50 (price on request) [Code number: 1r0115]
Details
1r0115

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-50 50 32 30 2/2 55
OGNEZA-PM-K Cable penetration, gray, d 65 (price on request) [Code number: 1r0116]
Details
1r0116

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-65 65 32 30 4 55
OGNEZA-PM-K Cable penetration, gray, d 80 (price on request) [Code number: 1r0117]
Details
1r0117

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-80 80 32 30 4 65
OGNEZA-PM-K Cable penetration, gray, d 90 (price on request) [Code number: 1r0118]
Details
1r0118

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: grey);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-90 90 32 30 4 75
OGNEZA-PM-K Cable penetration, red, d 110 (price on request) [Code number: 1r0119]
Details
1r0119

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-110 110 32 30 4 80/100
OGNEZA-PM-K Cable penetration, red, d 125 (price on request) [Code number: 1r0120]
Details
1r0120

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-125 125 32 30 7 200
OGNEZA-PM-K Cable penetration, red, d 40/20 (price on request) [Code number: 1r0121]
Details
1r0121

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-20/40 20-40 32 30 2/- 55
OGNEZA-PM-K Cable penetration, red, d 50 (price on request) [Code number: 1r0122]
Details
1r0122

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-50 50 32 30 2/2 55
OGNEZA-PM-K Cable penetration, red, d 65 (price on request) [Code number: 1r0123]
Details
1r0123

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-65 65 32 30 4 55
OGNEZA-PM-K Cable penetration, red, d 80 (price on request) [Code number: 1r0124]
Details
1r0124

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-80 80 32 30 4 65
OGNEZA-PM-K Cable penetration, red, d 90 (price on request) [Code number: 1r0125]
Details
1r0125

Application purpose:

  • To block the spread of fire along cable lines
  • For installation in places of passage of cables, pipelines of engineering systems, technological pipelines

Characteristics:

  • due to the fact that the coupling body is detachable, it can be mounted on an already laid cable line;
  • metal parts are powder coated to reduce corrosion (colour: red);
  • triggers approximately 15 seconds after the temperature rises to +150°C;
  • expansion coefficient: not less than 900%;
  • the fire resistance limit is 180 minutes;
  • service life: 30 years (at temperatures from -50 to +80°C).

Installation recommendations:

  • the thickness of the walls where the cable passage is mounted must be at least 150 mm;
  • the cable sleeve is installed on both sides in a metal sleeve in the ceiling along the cable lines. If there is no sleeve, installation is possible in a hole sealed with mineral wool;
  • fastened with anchor bolts or metal dowels.
Size Diameter Coupling height Insert width Number of inserts Weight
  mm mm mm mm gr
PM-K-90 90 32 30 4 75

See also
