Trash boxes of Hauraton Sportfix channels for sport facilities

Trash boxes of Hauraton Sportfix channels can be connect to pipes DN100/150. They are made of 100 percent recycled polypropylene. The material, which is used for manufacturing of the trash boxes, is durable, light weight, resistant to UV and moisture.

The trash boxes can be used for the transition from slotted channel to conventional channel.

The product group also includes special sand traps designed for arranging long jump holes and treadmills. Sand traps and soft curbs, which are also used when organizing jump pits, are installed (concreted) together. Installation plans can be found in the instructions. Also, the instructions indicate the number of soft curbs and sand traps, which are necessary when organizing jump pits in various versions.

The width of the sand trap is 500 mm, the length can be 500 or 1000 mm.

Photo Name Article Price
Hauraton SPORTFIX Inlet box, ROME model with slotted grating, 500x160x500 mm (price on request) [Code number: 18053]
Details
18053
Hauraton SPORTFIX Dish channel inlet, 600x250x543 mm (price on request) [Code number: 7250]
Details
7250
Hauraton SPORTFIX Dish channel inlet with running track adaptor, 600x350x60 mm (price on request) [Code number: 7254]
Details
7254
Hauraton SPORTFIX Trash boxes type PARIS, 500x160x500 mm (price on request) [Code number: 7352]
Details
7352
Hauraton SPORTFIX PRO 100 Trash box with mud bucket and GUGI-Grating made of PA-GF, MW 15/25, black, cl. B 125, locked, 500x160x504 mm (price on request) [Code number: 7515]
Details
7515
Hauraton SPORTFIX PRO Trash box with mud bucket and FIBRETEC slotted grating, SW 9 mm, black, cl. C 250, 500x160x504 mm (price on request) [Code number: 7525]
Details
7525
Hauraton SPORTFIX STANDARD 100 Trash box with mud bucket and slotted grating, SW 75/9, trafficable, locked, 500x150x488 mm (price on request) [Code number: 7535]
Details
7535
Hauraton SPORTFIX CLEAN 100 Trash box with particle catching bucket, with GUGI grating, made of PA, MW 15/25, load class B 125, 500x160x504 mm (price on request) [Code number: 7700]
Details
7700
Length Width Height Weight
mm mm mm kg
500 160 504 5,28
Hauraton SPORTFIX Sand trap, 1000x500x178 mm (price on request) [Code number: 7740 (H)]
Details
7740 (H)

Application purpose:

  • Playing field drainage
  • Playing field borders
  • Sports grounds

Material:

  • Channel body: modified Polypropylene
  • Angle housing: hot-dip galvanised steel

Product description:

SPORTFIX Sand trap channel made of modified PP, black, pre-shaped connection possibility DN/OD 110, with metal profile on one side for easy installation of running track, with mesh grating MW 30/30 galvanised, with safely fixed rubber mat, walkable.

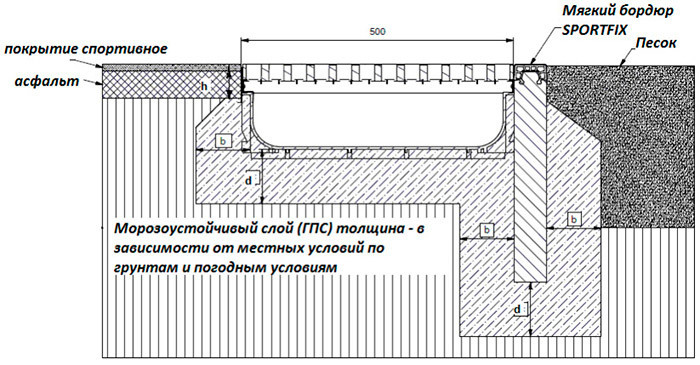

Installation diagram of sand traps and soft curbs for the option of installing sand traps in two rows

Installation diagram of sand traps and soft curbs for the option of installing sand traps in one row

General installation guidelines

1. The size of the concrete casing indicated in the drawings:

  • b = 100 mm;
  • d = 100 mm;
  • h = approx. 60 mm

The depth of the trench from the design position of the upper layer of the sports covering to the upper layer of the frost-resistant layer:

  • at the place where the sand trap is installed = sand trap height + 100 mm + 20-30 mm;
  • at the installation site of the soft curb = curb height + 100 mm + 20-30 mm.

2. Install the tracing line in accordance with the level, according to the project.

3. Sand traps and soft curbs are installed in a trench on a concrete base (foundation), the thickness of which should be d = 100 mm. The concrete base (foundation) is made of concrete grade B25 F200, W6, P4. The base (foundation) is equipped with a previously prepared frost-resistant layer. Temporary exposure of the foundation for 4-12 hours.

4. Equip a leveling layer of cement mortar in a ratio of 1: 3 with a thickness of 20-30 mm (cement mortar is prepared at the work site). A curb and a sand trap are installed together in the wet cement slurry in the design position, using a tracing string and a building level. The upper surface of the grit trap should be flush with the upper surface of the soft collapsible attachment of the soft curb.

5. The curb and sand trap are fixed with cement mortar - the caulking height is 30-50 mm. The cross-sectional shape of the caulking is triangular.

6. The concreting of the side parts is carried out with the concrete mixture B25 F200, W6, P4.

The concrete mix is ​​laid without breaks, with a consistent laying direction in one direction. The concrete mix is ​​compacted by bayonetting, followed by leveling and grouting the surface of the laid mix. The width of the side parts of the concrete frame is specified in clause 1.

Length Width Height Weight Intake cross-sect.
mm mm mm kg cm2
1000 500 178 16,80 445

Download product data sheet: 7740 (H) Hauraton SPORTFIX Sand trap

Download instructions for arranging a jump pit: 7740 (H) General instructions for arranging a jump pit

Download installation example: 7740 (H) Running track / sand pit class A 15

Download installation example: 7740 (H) Running track / sand pit class A 15

Hauraton SPORTFIX Sand trap, 500x500x178 mm (price on request) [Code number: 7745]
Details
7745 (H)

Application purpose:

  • Playing field drainage
  • Playing field borders
  • Sports grounds

Material:

  • Channel body: modified Polypropylene
  • Angle housing: hot-dip galvanised steel

Product description:

SPORTFIX Sand trap channel made of modified PP, black, pre-shaped connection possibility DN/OD 110, with metal profile on one side for easy installation of running track, with mesh grating MW 30/30, galvanised, with safely fixed rubber mat, walkable.

Installation diagram of sand traps and soft curbs for the option of installing sand traps in two rows

Installation diagram of sand traps and soft curbs for the option of installing sand traps in one row

General installation guidelines

1. The size of the concrete casing indicated in the drawings:

  • b = 100 mm;
  • d = 100 mm;
  • h = approx. 60 mm

The depth of the trench from the design position of the upper layer of the sports covering to the upper layer of the frost-resistant layer:

  • at the place where the sand trap is installed = sand trap height + 100 mm + 20-30 mm;
  • at the installation site of the soft curb = curb height + 100 mm + 20-30 mm.

2. Install the tracing line in accordance with the level, according to the project.

3. Sand traps and soft curbs are installed in a trench on a concrete base (foundation), the thickness of which should be d = 100 mm. The concrete base (foundation) is made of concrete grade B25 F200, W6, P4. The base (foundation) is equipped with a previously prepared frost-resistant layer. Temporary exposure of the foundation for 4-12 hours.

4. Equip a leveling layer of cement mortar in a ratio of 1: 3 with a thickness of 20-30 mm (cement mortar is prepared at the work site). A curb and a sand trap are installed together in the wet cement slurry in the design position, using a tracing string and a building level. The upper surface of the grit trap should be flush with the upper surface of the soft collapsible attachment of the soft curb.

5. The curb and sand trap are fixed with cement mortar - the caulking height is 30-50 mm. The cross-sectional shape of the caulking is triangular.

6. The concreting of the side parts is carried out with the concrete mixture B25 F200, W6, P4.

The concrete mix is ​​laid without breaks, with a consistent laying direction in one direction. The concrete mix is ​​compacted by bayonetting, followed by leveling and grouting the surface of the laid mix. The width of the side parts of the concrete frame is specified in clause 1.

Length Width Height Weight Intake cross-sect.
mm mm mm kg cm2
500 500 178 8,80 445

Download product data sheet: 7745 (H) Hauraton SPORTFIX Sand trap

Download instructions for arranging a jump pit: 7740 (H) General instructions for arranging a jump pit

Download installation example: 7745 (H) Running track / sand pit class A 15

Download installation example: 7745 (H) Running track / sand pit class A 15

Hauraton SPORTFIX Sand trap, 560 mm (price on request) [Code number: 7747 (H)]
Details
7747 (H)
Hauraton SPORTFIX Trash box, type 0 with turf support, 500x160x415 mm (price on request) [Code number: 7750 (H)]
Details
7750 (H)
Hauraton SPORTFIX Trash box, type 0, 500x170x455 mm (price on request) [Code number: 7770 (H)]
Details
7770 (H)
Hauraton SPORTFIX Trash box 100 with mud bucket, 500x146x485 mm (price on request) [Code number: 7830]
Details
7830
Length Width Height Weight
mm mm mm kg
500 146 485 4,40
Hauraton SPORTFIX Trash box with mud bucket, with GUGI-Mesh grating made of PA-GF, MW 15/25, black, for artifi cial turf securing, 500x160x505 mm (price on request) [Code number: 7870]
Details
7870
Hauraton SPORTFIX Trash box with mud bucket, with GUGI grating, MW 15/25, of polyamide, black, for securing of artificial turf, 500x160x519 mm (price on request) [Code number: 7871]
Details
7871
Hauraton SPORTFIX BASEL Trash box with GUGI-Grating made of PA-GF, MW 15/25, cl. B 125, black, locked, 500x160x519 mm (price on request) [Code number: 7905]
Details
7905
Hauraton SPORTFIX BASEL Trash box with FIBRETEC slotted grating, SW 9, cl. C 250, black, locked, 500x160x521 mm (price on request) [Code number: 7915]
Details
7915
Hauraton SPORTFIX BASEL Trash box with ductile iron grating, SW 10 mm, cl. E 600, black, 4-fold bolted, 500x160x519 mm (price on request) [Code number: 7925]
Details
7925
Hauraton SPORTFIX BASEL Trash box with FIBRETEC slotted grating, SW 9, cl. B 125, black, locked, 500x262x770 mm (price on request) [Code number: 7955]
Details
7955
