VALTEC threaded union connectors of brass

Home→ Catalog→ VALTEC→ Threaded fittings→ Unions

Union connectors is a special type of connection fittings, which are used for quick and easy connection of pipeline elements even in hard-to-reach places.

VALTEC threaded connectors are made of plumbing brass CW617N. Surface is nickel-plated. O-rings are made and EPDM elastomer.

Operating temperature up to +120 °C.

Nominal pressure of connectors with diameter up to 1” inclusive is 40 bar, and for fittings with larger diameter is 25 bar.

There are special notches on the thread due to which the sealing material is held better.

Photo Name Article Price
Photo Draft

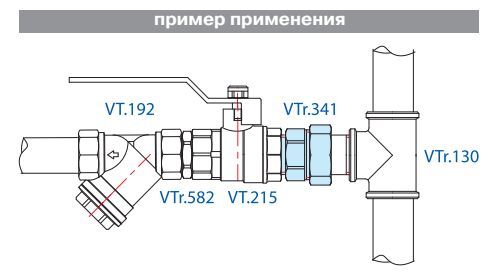

Photo VALTEC Straight union pipe, nickel plated, with coupling nut, female-male, d - 2" [Code number: VTr.341.N.0009] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, female-male, d - 2" [Code number: VTr.341.N.0009]
VALTEC Straight union pipe, nickel plated, with coupling nut, female-male, d - 2" [Code number: VTr.341.N.0009]
Details 		VTr.341.N.0009 3 889 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А S1 S2 Weight
  mm mm mm kg/pc
2" 89 82 69 1,331

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC One-end thread fitting with a union nut and a male thread, d - 1/2", d1 - 1/2" [Code number: VTr.613.N.0404] Draft VALTEC One-end thread fitting with a union nut and a male thread, d - 1/2", d1 - 1/2" [Code number: VTr.613.N.0404]
VALTEC One-end thread fitting with a union nut and a male thread, d - 1/2", d1 - 1/2" [Code number: VTr.613.N.0404]
Details 		VTr.613.N.0404 165 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
1/2" 1/2" 30 0,065

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft
Photo VALTEC One-end thread fitting with a union nut and a male thread, d - 3/4", d1 - 1/2" [Code number: VTr.613.N.0504] Draft VALTEC One-end thread fitting with a union nut and a male thread, d - 3/4", d1 - 1/2" [Code number: VTr.613.N.0504]
VALTEC One-end thread fitting with a union nut and a male thread, d - 3/4", d1 - 1/2" [Code number: VTr.613.N.0504]
Details 		VTr.613.N.0504 201 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
3/4" 1/2" 30 0,079

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft
Photo VALTEC One-end thread fitting with a union nut and a male thread, d - 3/4", d1 - 3/4" [Code number: VTr.613.N.0505] Draft VALTEC One-end thread fitting with a union nut and a male thread, d - 3/4", d1 - 3/4" [Code number: VTr.613.N.0505]
VALTEC One-end thread fitting with a union nut and a male thread, d - 3/4", d1 - 3/4" [Code number: VTr.613.N.0505]
Details 		VTr.613.N.0505 239 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
3/4" 3/4" 46 0,095

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft
Photo VALTEC One-end thread fitting with a union nut and a male thread, d - 1", d1 - 3/4" [Code number: VTr.613.N.0605] Draft VALTEC One-end thread fitting with a union nut and a male thread, d - 1", d1 - 3/4" [Code number: VTr.613.N.0605]
VALTEC One-end thread fitting with a union nut and a male thread, d - 1", d1 - 3/4" [Code number: VTr.613.N.0605]
Details 		VTr.613.N.0605 427 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
1" 3/4" 50 0,141

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft
Photo VALTEC One-end thread fitting with a union nut and a male thread, d - 1 1/4", d1 - 1" [Code number: VTr.613.N.0706] Draft VALTEC One-end thread fitting with a union nut and a male thread, d - 1 1/4", d1 - 1" [Code number: VTr.613.N.0706]
VALTEC One-end thread fitting with a union nut and a male thread, d - 1 1/4", d1 - 1" [Code number: VTr.613.N.0706]
Details 		VTr.613.N.0706 626 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
1 1/4" 1" 59 0,170

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft
Photo VALTEC Female threaded union pipe fitting, d - 3/4", d1 - 1/2 [Code number: VTr.614.N.0504] Draft VALTEC Female threaded union pipe fitting, d - 3/4", d1 - 1/2 [Code number: VTr.614.N.0504]
VALTEC Female threaded union pipe fitting, d - 3/4", d1 - 1/2 [Code number: VTr.614.N.0504]
Details 		VTr.614.N.0504 185 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
3/4" 1/2" 34 0,060

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft
Photo VALTEC Female threaded union pipe fitting, d - 1", d1 - 3/4" [Code number: VTr.614.N.0605] Draft VALTEC Female threaded union pipe fitting, d - 1", d1 - 3/4" [Code number: VTr.614.N.0605]
VALTEC Female threaded union pipe fitting, d - 1", d1 - 3/4" [Code number: VTr.614.N.0605]
Details 		VTr.614.N.0605 296 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G2 G1 А Weight
    mm kg/pc
1" 3/4" 46 0,098

Download data sheet: VALTEC Threaded fittings VALTEC Threaded fittings
Photo Draft

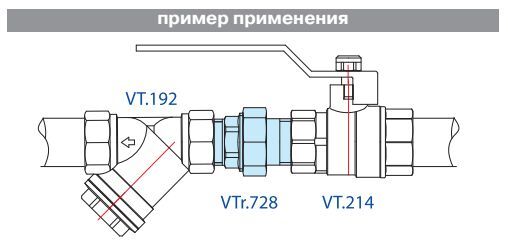

Photo VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1/2" [Code number: VTr.728.N.0004] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1/2" [Code number: VTr.728.N.0004]
VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1/2" [Code number: VTr.728.N.0004]
Details 		VTr.728.N.0004 270 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А В С Weight
  mm mm mm kg/pc
1/2" 48 10 14 0,088

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 3/4" [Code number: VTr.728.N.0005] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 3/4" [Code number: VTr.728.N.0005]
VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 3/4" [Code number: VTr.728.N.0005]
Details 		VTr.728.N.0005 445 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А В С Weight
  mm mm mm kg/pc
3/4" 57 11 15 0,140

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1" [Code number: VTr.728.N.0006] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1" [Code number: VTr.728.N.0006]
VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1" [Code number: VTr.728.N.0006]
Details 		VTr.728.N.0006 896 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А В С Weight
  mm mm mm kg/pc
1" 69 13 16 0,270

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1 1/4" [Code number: VTr.728.N.0007] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1 1/4" [Code number: VTr.728.N.0007]
VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1 1/4" [Code number: VTr.728.N.0007]
Details 		VTr.728.N.0007 1 290 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А В С Weight
  mm mm mm kg/pc
1 1/4" 77 15 20 0,411

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1 1/2" [Code number: VTr.728.N.0008] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1 1/2" [Code number: VTr.728.N.0008]
VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 1 1/2" [Code number: VTr.728.N.0008]
Details 		VTr.728.N.0008 1 736 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А В С Weight
  mm mm mm kg/pc
1 1/2" 87 18 22 0,573

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 2" [Code number: VTr.728.N.0009] Draft VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 2" [Code number: VTr.728.N.0009]
VALTEC Straight union pipe, nickel plated, with coupling nut, male-male, d - 2" [Code number: VTr.728.N.0009]
Details 		VTr.728.N.0009 4 224 rub

Application purpose:

  • For creating threaded connections on pipelines
  • For water supply systems
  • For heating
  • For compressed air lines
  • For technical pipelines
  • For pipelines of any material

Characteristics:

  • Material: hot-pressed brass CW 617N according to EN 12165-2011 standard (corresponds to LS59-2 brand according to GOST 15527-2004)
  • Working environment temperature range: -20 - + 120 °С
  • Nominal pressure: 4.0 MPa
  • Chrome surface
  • Average service life: 30 years



G А В С Weight
  mm mm mm kg/pc
2"

Download data sheet: Threaded connectors VALTEC Threaded connectors
Photo Draft
Photo VALTEC Adapter for heating cable [Code number: VTr.756.N.0004] Draft VALTEC Adapter for heating cable [Code number: VTr.756.N.0004]
VALTEC Adapter for heating cable [Code number: VTr.756.N.0004]
Details 		VTr.756.N.0004 209 rub
Photo [OUT OF PRODUCTION] - VALTEC Elbow union, female-male, d - 1/2" (MINKOR) [Code number: MKr.098.Y.0004]
[OUT OF PRODUCTION] - VALTEC Elbow union, female-male, d - 1/2" (MINKOR) [Code number: MKr.098.Y.0004]
Details 		MKr.098.Y.0004
Photo [OUT OF PRODUCTION] - VALTEC Elbow union, female-male, d - 3/4" (MINKOR) [Code number: MKr.098.Y.0005]
[OUT OF PRODUCTION] - VALTEC Elbow union, female-male, d - 3/4" (MINKOR) [Code number: MKr.098.Y.0005]
Details 		MKr.098.Y.0005
Photo [OUT OF PRODUCTION] - VALTEC Straight union, female-male, d - 1/2" (MINKOR) [Code number: MKr.341.Y.0004]
[OUT OF PRODUCTION] - VALTEC Straight union, female-male, d - 1/2" (MINKOR) [Code number: MKr.341.Y.0004]
Details 		MKr.341.Y.0004
Photo [OUT OF PRODUCTION] - VALTEC Straight union, female-male, d - 3/4" (MINKOR) [Code number: MKr.341.Y.0005]
[OUT OF PRODUCTION] - VALTEC Straight union, female-male, d - 3/4" (MINKOR) [Code number: MKr.341.Y.0005]
Details 		MKr.341.Y.0005

See also

%d0%a3%d1%81%d0%b8%d0%bb%d0%b8%d0%b2%d0%b0%d1%8e%d1%89%d0%b8%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Strengthen connecting elements
%d0%a1%d0%be%d0%b5%d0%b4%d0%b8%d0%bd%d0%b8%d1%82%d0%b5%d0%bb%d1%8c%d0%bd%d1%8b%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Connecting elements
%d0%9f%d0%b5%d1%80%d0%b5%d1%85%d0%be%d0%b4%d1%8b %d0%bd%d0%b0 %d0%bf%d0%bb%d0%b0%d1%81%d1%82%d0%b8%d0%ba
PP-adapter Konfix etc.

© Inrusstrade.ru 1999-2024. "Inrusstrade" Ltd. Copying and quoting is prohibited
