Corrugated pipes for Wavin chambers | Inrusstrade

Corrugated pipes of Wavin inspection chambers are used as body of drainage or inspection chamber. Height of chamber should be determined by depth of laying of drainage pipes. You should consider level and quantity of groundwater also.

Wavin corrugated pipes are painted in orange. They are made of PVC. They are produced by segments of 6 m.

Photo Name Article Price

Photo Wavin corrugated pipe, length 6 m, d425 [Code number: 3011407 / 22978056]

Draft Wavin corrugated pipe, length 6 m, d425 [Code number: 3011407 / 22978056]

Wavin corrugated pipe, length 6 m, d425 [Code number: 3011407 / 22978056]

Details

3011407

ATTENTION! This product is temporarily unavailable for order!

Application purposes:

For Wavin drainage chambers

Corrugated shaft pipe is used for the installation of Wavin Tegra 600 inspection chambers. The shaft pipe is connected to the base and cone with the help of O-rings. Diameter of the connected pipes must not exceed 160 mm. You can see the appearance of pipe and its dimensions in the photo and draft.

The main advantages of Wavin drainage chambers:

Do not require additional anchoring or strengthening procedures;
Resistant to loads;
Design is adapted to the Russian climate;
Suitable for different types of soil.

Material: polypropylene (PP).

Color: orange.

Working environment: water.

Permissible installation depth: 6 m.

Acceptable groundwater level: 5 m.

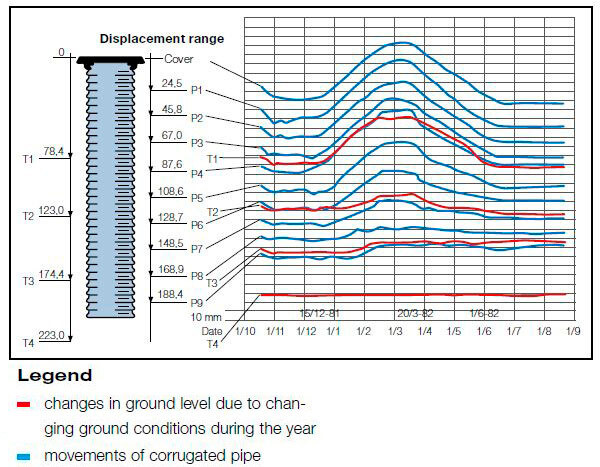

Movements of corrugated pipe in ground

Movements of corrugated pipe in ground

Dy/H1	Dy	Du	L
mm	mm	mm	mm
425 x 6000	425	476	6000

Photo Wavin corrugated pipe, length 3 m, d425* [Code number: 22978053]

Draft Wavin corrugated pipe, length 3 m, d425* [Code number: 22978053]

Wavin corrugated pipe, length 3 m, d425* [Code number: 22978053]

Details

22978053

ATTENTION! This product is temporarily unavailable for order!

Application purposes:

For Wavin drainage chambers

Corrugated shaft pipe is used for the installation of Wavin Tegra 600 inspection chambers. The shaft pipe is connected to the base and cone with the help of O-rings. Diameter of the connected pipes must not exceed 160 mm. You can see the appearance of pipe and its dimensions in the photo and draft.

The main advantages of Wavin drainage chambers:

Do not require additional anchoring or strengthening procedures;
Resistant to loads;
Design is adapted to the Russian climate;
Suitable for different types of soil.

Color: orange.

Working environment: water.

Permissible installation depth: 6 m.

Acceptable groundwater level: 5 m.

Movements of corrugated pipe in ground

Movements of corrugated pipe in ground

Dy	Du	H1	H2	Material
mm	mm	mm	mm
425	476	3000	2850	PVC
