VALTEC threaded nipples of brass

Home→ Catalog→ VALTEC→ Threaded fittings→ Nipples

The product group includes the following types of VALTEC nipples:

  • Nipples with male cylindrical thread for connecting pipes with the same diameters. They are mounted with using a wrench, there is a hexagonal section to facilitate installation on the body.
  • "Eurocone" nipples – the Eurocone standard connectors are widely used in the installation of plumbing and heating systems in homes, and they allow to connect metal-polymer, polymer, thin-walled copper and steel pipes to the fittings. Such a connection can be repeatedly disassembled and mounted without replacing the pipe.
  • Nipples, socket wrench tightening – they are designed for connecting fittings when it is not possible to use a conventional nipple mounted with a regular spanner.

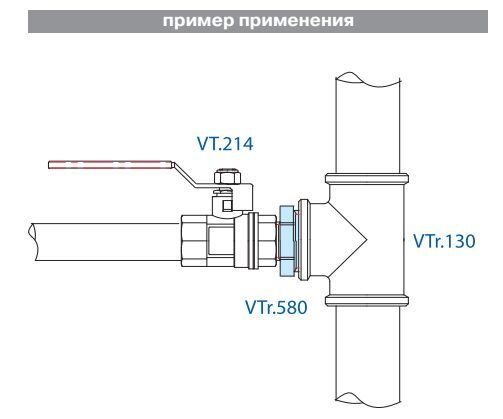

  • Reducing nipples for connection of pipeline elements with various diameters.
  • Nipples for manifold blocks that are used in conjunction with flow meters. They provide a transition from conventional thread to the "Euroconus".
Photo Наименование Article Цена
Photo Draft
Photo VALTEC Reducing nipple, male-male, d - 1 1/2", d1 - 1 1/4" [Code number: VTr.580.N.0807] Draft VALTEC Reducing nipple, male-male, d - 1 1/2", d1 - 1 1/4" [Code number: VTr.580.N.0807]
VALTEC Reducing nipple, male-male, d - 1 1/2", d1 - 1 1/4" [Code number: VTr.580.N.0807]
Details 		VTr.580.N.0807 547 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G2 G1 А S Weight
    mm mm kg/pc
1 1/2" 1 1/4" 41 49 0,177

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Reducing nipple, male-male, d - 2", d1 - 1/2" [Code number: VTr.580.N.0904] Draft VALTEC Reducing nipple, male-male, d - 2", d1 - 1/2" [Code number: VTr.580.N.0904]
VALTEC Reducing nipple, male-male, d - 2", d1 - 1/2" [Code number: VTr.580.N.0904]
Details 		VTr.580.N.0904 819 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G2 G1 А S Weight
    mm mm kg/pc
2" 1/2" 39 61 0,260

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Reducing nipple, male-male, d - 2", d1 - 3/4" [Code number: VTr.580.N.0905] Draft VALTEC Reducing nipple, male-male, d - 2", d1 - 3/4" [Code number: VTr.580.N.0905]
VALTEC Reducing nipple, male-male, d - 2", d1 - 3/4" [Code number: VTr.580.N.0905]
Details 		VTr.580.N.0905 788 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G2 G1 А S Weight
    mm mm kg/pc
2" 3/4" 41 61 0,264

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Reducing nipple, male-male, d - 2", d1 - 1" [Code number: VTr.580.N.0906] Draft VALTEC Reducing nipple, male-male, d - 2", d1 - 1" [Code number: VTr.580.N.0906]
VALTEC Reducing nipple, male-male, d - 2", d1 - 1" [Code number: VTr.580.N.0906]
Details 		VTr.580.N.0906 840 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G2 G1 А S Weight
    mm mm kg/pc
2" 1" 41 61 0,260

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Reducing nipple, male-male, d - 2", d1 - 1 1/4" [Code number: VTr.580.N.0907] Draft VALTEC Reducing nipple, male-male, d - 2", d1 - 1 1/4" [Code number: VTr.580.N.0907]
VALTEC Reducing nipple, male-male, d - 2", d1 - 1 1/4" [Code number: VTr.580.N.0907]
Details 		VTr.580.N.0907 805 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G2 G1 А S Weight
    mm mm kg/pc
2" 1 1/4" 41 61 0,277

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Reducing nipple, male-male, d - 2", d1 - 1 1/2" [Code number: VTr.580.N.0908] Draft VALTEC Reducing nipple, male-male, d - 2", d1 - 1 1/2" [Code number: VTr.580.N.0908]
VALTEC Reducing nipple, male-male, d - 2", d1 - 1 1/2" [Code number: VTr.580.N.0908]
Details 		VTr.580.N.0908 763 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G2 G1 А S Weight
    mm mm kg/pc
2" 1 1/2" 43 61 0,266

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Reducing nipple, eurocone, male-male, d - 1/2, d1 - 3/4" [Code number: VTr.580.NE.040E] Draft VALTEC Reducing nipple, eurocone, male-male, d - 1/2, d1 - 3/4" [Code number: VTr.580.NE.040E]
VALTEC Reducing nipple, eurocone, male-male, d - 1/2, d1 - 3/4" [Code number: VTr.580.NE.040E]
Details 		VTr.580.NE.040E 156 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС



G1 G2 А S Weight
    mm mm kg/pc
1/2" 3/4ЕК" 26 27 0,052

Download data sheet: VALTEC Threaded fittings
Photo VALTEC Nipple for manifold block 586, for flowmeter, eurocone, male-male, d - 1/2", d1 - 3/4" [Code number: VTr.580.NEI.040E]
VALTEC Nipple for manifold block 586, for flowmeter, eurocone, male-male, d - 1/2", d1 - 3/4" [Code number: VTr.580.NEI.040E]
Details 		VTr.580.NEI.040E 540 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Used together with flowmeter VT.AC674
  • Suitable for manifold blocks VTc.596, VTc.586
  • Execution material: brass brand СW 617N
  • Provides a transition from a conventional thread to a "Eurocone" (with an external thread)
  • Has a hexagonal flange, thanks to which the installation is carried out with an open-end wrench or an adjustable wrench
G2 G1

1/2" 3/4"
Photo Draft
Photo VALTEC Nipple, male-male, d - 1/2" [Code number: VTr.582.N.0004] Draft VALTEC Nipple, male-male, d - 1/2" [Code number: VTr.582.N.0004]
VALTEC Nipple, male-male, d - 1/2" [Code number: VTr.582.N.0004]
Details 		VTr.582.N.0004 70 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G А Weight
  mm kg/pc
1/2" 23 0,029

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Nipple, male-male, d - 3/4" [Code number: VTr.582.N.0005] Draft VALTEC Nipple, male-male, d - 3/4" [Code number: VTr.582.N.0005]
VALTEC Nipple, male-male, d - 3/4" [Code number: VTr.582.N.0005]
Details 		VTr.582.N.0005 132 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G А Weight
  mm kg/pc
3/4" 27 0,047

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Nipple, male-male, d - 1" [Code number: VTr.582.N.0006] Draft VALTEC Nipple, male-male, d - 1" [Code number: VTr.582.N.0006]
VALTEC Nipple, male-male, d - 1" [Code number: VTr.582.N.0006]
Details 		VTr.582.N.0006 270 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G А Weight
  mm kg/pc
1" 30 0,093

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Nipple, male-male, d - 1 1/4" [Code number: VTr.582.N.0007] Draft VALTEC Nipple, male-male, d - 1 1/4" [Code number: VTr.582.N.0007]
VALTEC Nipple, male-male, d - 1 1/4" [Code number: VTr.582.N.0007]
Details 		VTr.582.N.0007 389 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G А Weight
  mm kg/pc
1 1/4" 38 0,142

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Nipple, male-male, d - 1 1/2" [Code number: VTr.582.N.0008] Draft VALTEC Nipple, male-male, d - 1 1/2" [Code number: VTr.582.N.0008]
VALTEC Nipple, male-male, d - 1 1/2" [Code number: VTr.582.N.0008]
Details 		VTr.582.N.0008 510 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G А Weight
  mm kg/pc
1 1/2" 40 0,175

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Nipple, male-male, d - 2" [Code number: VTr.582.N.0009] Draft VALTEC Nipple, male-male, d - 2" [Code number: VTr.582.N.0009]
VALTEC Nipple, male-male, d - 2" [Code number: VTr.582.N.0009]
Details 		VTr.582.N.0009 797 rub

Application purpose:

  • For cold water supply
  • For hot water
  • For heating
  • For domestic water supply systems
  • For compressed air systems
  • For technological pipelines
  • For pipelines transporting gases and liquids, non-aggressive to the fitting material
  • To create detachable threaded connections

Characteristics:

  • Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
  • Nominal pressure 17 to 40 bar
  • Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
  • The maximum temperature of a working environment is up to +250 ºС
G А Weight
  mm kg/pc
2" 44 0,243

Download data sheet: VALTEC Threaded fittings
Photo Draft
Photo VALTEC Threaded fitting - manifold nipple, d - 1", d1 - 1", male-male [Code number: VTr.584.N.0006] Draft VALTEC Threaded fitting - manifold nipple, d - 1", d1 - 1", male-male [Code number: VTr.584.N.0006]
VALTEC Threaded fitting - manifold nipple, d - 1", d1 - 1", male-male [Code number: VTr.584.N.0006]
Details 		VTr.584.N.0006 343 rub
Photo Draft
Photo VALTEC Threaded fitting - manifold nipple, d - 1 1/2", d1 - 1 1/2", male-male [Code number: VTr.584.N.0008] Draft VALTEC Threaded fitting - manifold nipple, d - 1 1/2", d1 - 1 1/2", male-male [Code number: VTr.584.N.0008]
VALTEC Threaded fitting - manifold nipple, d - 1 1/2", d1 - 1 1/2", male-male [Code number: VTr.584.N.0008]
Details 		VTr.584.N.0008 615 rub
Photo Draft
Photo VALTEC Threaded fitting - manifold adapter nipple, d - 1", d1 - 1/2", male-male [Code number: VTr.601.N.0604] Draft VALTEC Threaded fitting - manifold adapter nipple, d - 1", d1 - 1/2", male-male [Code number: VTr.601.N.0604]
VALTEC Threaded fitting - manifold adapter nipple, d - 1", d1 - 1/2", male-male [Code number: VTr.601.N.0604]
Details 		VTr.601.N.0604 235 rub
Photo Draft
Photo VALTEC Threaded fitting - manifold adapter nipple, d - 1", d1 - 3/4", male-male [Code number: VTr.601.N.0605] Draft VALTEC Threaded fitting - manifold adapter nipple, d - 1", d1 - 3/4", male-male [Code number: VTr.601.N.0605]
VALTEC Threaded fitting - manifold adapter nipple, d - 1", d1 - 3/4", male-male [Code number: VTr.601.N.0605]
Details 		VTr.601.N.0605 239 rub
Photo Draft
Photo VALTEC Threaded fitting - manifold adapter nipple, d - 1 1/2", d1 - 3/4", male-male [Code number: VTr.601.N.0805] Draft VALTEC Threaded fitting - manifold adapter nipple, d - 1 1/2", d1 - 3/4", male-male [Code number: VTr.601.N.0805]
VALTEC Threaded fitting - manifold adapter nipple, d - 1 1/2", d1 - 3/4", male-male [Code number: VTr.601.N.0805]
Details 		VTr.601.N.0805 474 rub
Photo Draft
Photo VALTEC Threaded fitting - manifold adapter nipple, d - 1 1/2", d1 - 1", male-male [Code number: VTr.601.N.0806] Draft VALTEC Threaded fitting - manifold adapter nipple, d - 1 1/2", d1 - 1", male-male [Code number: VTr.601.N.0806]
VALTEC Threaded fitting - manifold adapter nipple, d - 1 1/2", d1 - 1", male-male [Code number: VTr.601.N.0806]
Details 		VTr.601.N.0806 499 rub

See also

PP-adapter Konfix etc.
Connecting elements
Strengthen connecting elements
© Inrusstrade.ru 1999-2025. "Inrusstrade" Ltd. Copying and quoting is prohibited
