| Photo |
Name |
Article |
Price |
|
|

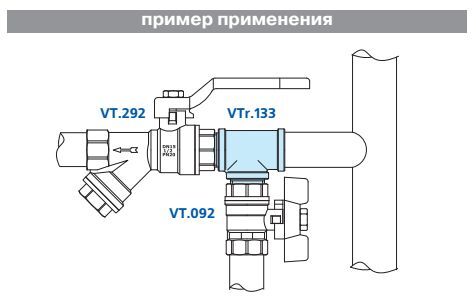

VALTEC T-piece, female-male-male, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.133.RN.050405]
Details
|
VTr.133.RN.050405 |
446 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-male-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
1/2" |
3/4" |
62 |
34 |
0,145 |
Download data sheet:  VALTEC Threaded fittings
|
|
|
VALTEC T-piece, female-male-male, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.133.RN.050504]
Details
|
VTr.133.RN.050504 |
420 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-male-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
3/4" |
1/2" |
58 |
36 |
0,157 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC T-piece, female-female-male, d - 1/2" [Code number: VTr.134.N.0004]
Details
|
VTr.134.N.0004 |
337 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-female-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1/2" |
1/2" |
1/2" |
53 |
30 |
0,103 |
Download data sheet: VALTEC Threaded fittings
|
|
|

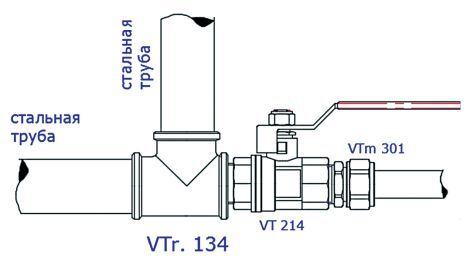

VALTEC T-piece, female-female-male, d - 3/4" [Code number: VTr.134.N.0005]
Details
|
VTr.134.N.0005 |
562 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-female-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
3/4" |
3/4" |
64 |
38 |
0,168 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC T-piece, female-female-male, d - 1/2", d1 - 3/4", d2 - 3/4" [Code number: VTr.134.RN.040505]
Details
|
VTr.134.RN.040505 |
451 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-female-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1/2" |
3/4" |
3/4" |
56 |
36 |
0,140 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC T-piece, female-female-male, d - 3/4", d1 - 1/2", d2 - 1/2" [Code number: VTr.134.RN.050404]
Details
|
VTr.134.RN.050404 |
461 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-female-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
1/2" |
1/2" |
55 |
34 |
0,140 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC T-piece, female-female-male, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.134.RN.050405]
Details
|
VTr.134.RN.050405 |
477 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-female-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
1/2" |
3/4" |
58 |
34 |
0,144 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC T-piece, female-female-male, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.134.RN.050504]
Details
|
VTr.134.RN.050504 |
516 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For branching the pipeline
Characteristics:
- Thread female-female-male
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Female thread is compatible with male conical thread according to GOST 6211 (ISO R7)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
3/4" |
1/2" |
56 |
38 |
0,152 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 1/2", d1 - 1/2" [Code number: VTr.136.N.0404]
Details
|
VTr.136.N.0404 |
927 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For a liner for the immersion temperature sensor VTr.551
Characteristics:
- Thread female
- Tilt axis 25°
- Nominal pressure up to 16 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +150 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1/2" |
1/2" |
1/2" |
109 |
44 |
0,300 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 3/4", d1 - 1/2" [Code number: VTr.136.N.0504]
Details
|
VTr.136.N.0504 |
1 107 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For a liner for the immersion temperature sensor VTr.551
Characteristics:
- Thread female
- Tilt axis 25°
- Nominal pressure up to 16 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +150 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
1/2" |
3/4" |
109 |
47 |
0,330 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 1", d1 - 1/2" [Code number: VTr.136.N.0604]
Details
|
VTr.136.N.0604 |
1 247 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
- For a liner for the immersion temperature sensor VTr.551
Characteristics:
- Thread female
- Tilt axis 25°
- Nominal pressure up to 16 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +150 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1" |
1/2" |
1" |
109 |
50 |
0,410 |
Download data sheet: VALTEC Threaded fittings
|
|
|

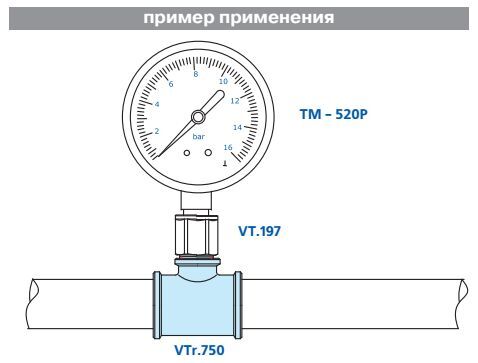

VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.750.N.0504]
Details
|
VTr.750.N.0504 |
422 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
1/2" |
3/4" |
56 |
27 |
0,142 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 1", d1 - 1/2", d2 - 1" [Code number: VTr.750.N.0604]
Details
|
VTr.750.N.0604 |
571 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1" |
1/2" |
1" |
56 |
30 |
0,196 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 1", d1 - 3/4", d2 - 1" [Code number: VTr.750.N.0605]
Details
|
VTr.750.N.0605 |
574 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1" |
3/4" |
1" |
62 |
30 |
0,214 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 1/2", d2 - 1 1/4" [Code number: VTr.750.N.0704]
Details
|
VTr.750.N.0704 |
883 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1 1/4" |
1/2" |
1 1/4" |
64 |
36 |
0,329 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 3/4", d2 - 1 1/4" [Code number: VTr.750.N.0705]
Details
|
VTr.750.N.0705 |
1 106 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1 1/4" |
3/4" |
1 1/4" |
70 |
36 |
0,364 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 1", d2 - 1 1/4" [Code number: VTr.750.N.0706]
Details
|
VTr.750.N.0706 |
1 196 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1 1/4" |
1" |
1 1/4" |
76 |
38 |
0,423 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 1/2", d1 - 3/4", d2 - 1/2" [Code number: VTr.750.RN.040504]
Details
|
VTr.750.RN.040504 |
345 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 1/2" |
3/4" |
1/2" |
50 |
30 |
0,138 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 1/2", d2 - 1/2" [Code number: VTr.750.RN.050404]
Details
|
VTr.750.RN.050404 |
402 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
1/2" |
1/2" |
50 |
30 |
0,140 |
Download data sheet: VALTEC Threaded fittings
|
|
|
VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.750.RN.050504]
Details
|
VTr.750.RN.050504 |
430 rub |
Application purpose:
- For cold water supply
- For hot water
- For heating
- For domestic water supply systems
- For compressed air systems
- For technological pipelines
- For pipelines transporting gases and liquids, non-aggressive to the fitting material
- To create detachable threaded connections
Characteristics:
- Pipe cylindrical thread according to GOST 6357 (ISO 228, EN 10226)
- Nominal pressure 17 to 40 bar
- Execution material: hot-pressed brass of the CW 617N brand according to the EN 12165 standard
- The maximum temperature of a working environment is up to +250 ºС
| G1 |
G2 |
G3 |
А |
B |
Weight |
| |
|
|
mm |
mm |
kg/pc |
| 3/4" |
3/4" |
1/2" |
50 |
30 |
0,151 |
Download data sheet: VALTEC Threaded fittings
|
![Photo VALTEC T-piece, female-male-male, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.133.RN.050405]](/system/products/photos/000/039/826/original/VTr.133.RN.050405-photo.jpg?1569343172)
![Photo VALTEC T-piece, female-male-male, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.133.RN.050504]](/system/products/photos/000/039/827/original/VTr.133.RN.050504-photo.jpg?1569343220)
![Photo VALTEC T-piece, female-female-male, d - 1/2" [Code number: VTr.134.N.0004]](/system/products/photos/000/039/828/original/VTr.134.N.0004-photo.jpg?1569343198)
![Photo VALTEC T-piece, female-female-male, d - 3/4" [Code number: VTr.134.N.0005]](/system/products/photos/000/039/829/original/VTr.134.N.0005-photo.jpg?1569343182)
![Photo VALTEC T-piece, female-female-male, d - 1/2", d1 - 3/4", d2 - 3/4" [Code number: VTr.134.RN.040505]](/system/products/photos/000/039/830/original/VTr.134.RN.040505-photo.jpg?1569343164)
![Photo VALTEC T-piece, female-female-male, d - 3/4", d1 - 1/2", d2 - 1/2" [Code number: VTr.134.RN.050404]](/system/products/photos/000/039/831/original/VTr.134.RN.050404-photo.jpg?1569343200)
![Photo VALTEC T-piece, female-female-male, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.134.RN.050405]](/system/products/photos/000/039/832/original/VTr.134.RN.050405-photo.jpg?1569343142)
![Photo VALTEC T-piece, female-female-male, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.134.RN.050504]](/system/products/photos/000/039/833/original/VTr.134.RN.050504-photo.jpg?1569343220)
![Photo VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 1/2", d1 - 1/2" [Code number: VTr.136.N.0404]](/system/products/photos/000/039/834/original/VTr.136.N.0404-photo.jpg?1569343226)
![Photo VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 3/4", d1 - 1/2" [Code number: VTr.136.N.0504]](/system/products/photos/000/039/835/original/VTr.136.N.0504-photo.jpg?1569343138)
![Photo VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 1", d1 - 1/2" [Code number: VTr.136.N.0604]](/system/products/photos/000/039/836/original/VTr.136.N.0604-photo.jpg?1569343180)
![Photo VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.750.N.0504]](/system/products/photos/000/040/057/original/VTr.750.N.0504-photo.jpg?1569343149)
![Photo VALTEC Transitive T-piece, female-female-female, d - 1", d1 - 1/2", d2 - 1" [Code number: VTr.750.N.0604]](/system/products/photos/000/040/058/original/VTr.750.N.0604-photo.jpg?1569343218)
![Photo VALTEC Transitive T-piece, female-female-female, d - 1", d1 - 3/4", d2 - 1" [Code number: VTr.750.N.0605]](/system/products/photos/000/040/059/original/VTr.750.N.0605-photo.jpg?1569343171)
![Photo VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 1/2", d2 - 1 1/4" [Code number: VTr.750.N.0704]](/system/products/photos/000/040/060/original/VTr.750.N.0704-photo.jpg?1569343149)
![Photo VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 3/4", d2 - 1 1/4" [Code number: VTr.750.N.0705]](/system/products/photos/000/040/061/original/VTr.750.N.0705-photo.jpg?1569343181)
![Photo VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 1", d2 - 1 1/4" [Code number: VTr.750.N.0706]](/system/products/photos/000/040/062/original/VTr.750.N.0706-photo.jpg?1569343207)
![Photo VALTEC Transitive T-piece, female-female-female, d - 1/2", d1 - 3/4", d2 - 1/2" [Code number: VTr.750.RN.040504]](/system/products/photos/000/040/063/original/VTr.750.RN.040504-photo.jpg?1569343185)
![Photo VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 1/2", d2 - 1/2" [Code number: VTr.750.RN.050404]](/system/products/photos/000/040/064/original/VTr.750.RN.050404-photo.jpg?1569343150)
![Photo VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.750.RN.050504]](/system/products/photos/000/040/065/original/VTr.750.RN.050504-photo.jpg?1569343205)
![Draft VALTEC T-piece, female-male-male, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.133.RN.050405]](/system/products/drafts/000/039/826/original/VTr.133.RN.050405-draft.jpg?1569345770)
![Draft VALTEC T-piece, female-male-male, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.133.RN.050504]](/system/products/drafts/000/039/827/original/VTr.133.RN.050504-draft.jpg?1569345696)
![Draft VALTEC T-piece, female-female-male, d - 1/2" [Code number: VTr.134.N.0004]](/system/products/drafts/000/039/828/original/VTr.134.N.0004-draft.jpg?1569345806)
![Draft VALTEC T-piece, female-female-male, d - 3/4" [Code number: VTr.134.N.0005]](/system/products/drafts/000/039/829/original/VTr.134.N.0005-draft.jpg?1569345694)
![Draft VALTEC T-piece, female-female-male, d - 1/2", d1 - 3/4", d2 - 3/4" [Code number: VTr.134.RN.040505]](/system/products/drafts/000/039/830/original/VTr.134.RN.040505-draft.jpg?1569345685)
![Draft VALTEC T-piece, female-female-male, d - 3/4", d1 - 1/2", d2 - 1/2" [Code number: VTr.134.RN.050404]](/system/products/drafts/000/039/831/original/VTr.134.RN.050404-draft.jpg?1569345712)
![Draft VALTEC T-piece, female-female-male, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.134.RN.050405]](/system/products/drafts/000/039/832/original/VTr.134.RN.050405-draft.jpg?1569345680)
![Draft VALTEC T-piece, female-female-male, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.134.RN.050504]](/system/products/drafts/000/039/833/original/VTr.134.RN.050504-draft.jpg?1569345782)
![Draft VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 1/2", d1 - 1/2" [Code number: VTr.136.N.0404]](/system/products/drafts/000/039/834/original/VTr.136.N.0404-draft.jpg?1569345796)
![Draft VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 3/4", d1 - 1/2" [Code number: VTr.136.N.0504]](/system/products/drafts/000/039/835/original/VTr.136.N.0504-draft.jpg?1569345708)
![Draft VALTEC Tapered tee for a liner for the immersion temperature sensor, d - 1", d1 - 1/2" [Code number: VTr.136.N.0604]](/system/products/drafts/000/039/836/original/VTr.136.N.0604-draft.jpg?1569345705)
![Draft VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 1/2", d2 - 3/4" [Code number: VTr.750.N.0504]](/system/products/drafts/000/040/057/original/VTr.750.N.0504-draft.jpg?1569345808)
![Draft VALTEC Transitive T-piece, female-female-female, d - 1", d1 - 1/2", d2 - 1" [Code number: VTr.750.N.0604]](/system/products/drafts/000/040/058/original/VTr.750.N.0604-draft.jpg?1569345728)
![Draft VALTEC Transitive T-piece, female-female-female, d - 1", d1 - 3/4", d2 - 1" [Code number: VTr.750.N.0605]](/system/products/drafts/000/040/059/original/VTr.750.N.0605-draft.jpg?1569345801)
![Draft VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 1/2", d2 - 1 1/4" [Code number: VTr.750.N.0704]](/system/products/drafts/000/040/060/original/VTr.750.N.0704-draft.jpg?1569345742)
![Draft VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 3/4", d2 - 1 1/4" [Code number: VTr.750.N.0705]](/system/products/drafts/000/040/061/original/VTr.750.N.0705-draft.jpg?1569345722)
![Draft VALTEC Transitive T-piece, female-female-female, d - 1 1/4", d1 - 1", d2 - 1 1/4" [Code number: VTr.750.N.0706]](/system/products/drafts/000/040/062/original/VTr.750.N.0706-draft.jpg?1569345804)
![Draft VALTEC Transitive T-piece, female-female-female, d - 1/2", d1 - 3/4", d2 - 1/2" [Code number: VTr.750.RN.040504]](/system/products/drafts/000/040/063/original/VTr.750.RN.040504-draft.jpg?1569345762)
![Draft VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 1/2", d2 - 1/2" [Code number: VTr.750.RN.050404]](/system/products/drafts/000/040/064/original/VTr.750.RN.050404-draft.jpg?1569345804)
![Draft VALTEC Transitive T-piece, female-female-female, d - 3/4", d1 - 3/4", d2 - 1/2" [Code number: VTr.750.RN.050504]](/system/products/drafts/000/040/065/original/VTr.750.RN.050504-draft.jpg?1569345777)
