Tatpolymer Shower channels

Home→ Catalog→ Tatpolymer→ Tatpolymer Drainage→ Tatpolymer Shower channels

Tatpolimer shower channels are made from high quality raw materials and have a high throughput - it ranges from 0.4 l/s (or 24 l/m) to 0.8 l/s (or 48 l/m).

They differ in functionality. They can have a horizontal or vertical outlet. All shower channels are equipped with a "dry" mechanical trap seal or water seal for reliable isolation of premises from sewer fumes. The dry seal or water seal can be removed for cleaning.

A wide range of sizes (gutter length from 500 to 1000 mm) of shower channels Tatpolimer allows to mount them both in large rooms and in small ones.

Cases of shower channels Tatpolimer are made of ABS plastic. Grilles are made of stainless steel - they can be perforated or have a panel for laying tiles or natural stone.

The mounting feet are height adjustable.

Photo Name Article Price

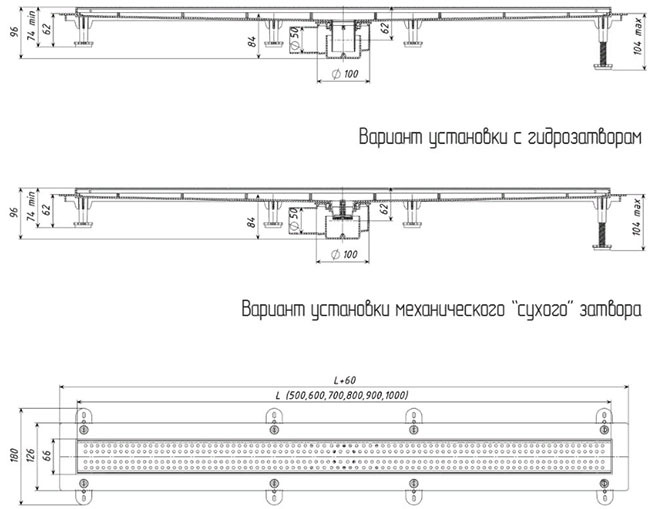

Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0021 / ТП-50.1A-700] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0021 / ТП-50.1A-700]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0021 / ТП-50.1A-700]
Details 		1d0021 9 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0022 / ТП-50.1B-700] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0022 / ТП-50.1B-700]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0022 / ТП-50.1B-700]
Details 		1d0022 9 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type В (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0023 / ТП-50.1С-700] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0023 / ТП-50.1С-700]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0023 / ТП-50.1С-700]
Details 		1d0023 9 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0024 / ТП-50A-700] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0024 / ТП-50A-700]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0024 / ТП-50A-700]
Details 		1d0024 6 325 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without stainless steel frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0025 / ТП-50B-700] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0025 / ТП-50B-700]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 700 mm, vertical, D - 50 [Code number: 1d0025 / ТП-50B-700]
Details 		1d0025 6 325 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without stainless steel frame;
  • grille type В (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 66
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave) , dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0026 / ТП-55.1A-700] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave) , dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0026 / ТП-55.1A-700]
Tatpolymer Shower channel, stainless steel frame, grate А (wave) , dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0026 / ТП-55.1A-700]
Details 		1d0026 9 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal,;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0027 / ТП-55.1B-700] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0027 / ТП-55.1B-700]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0027 / ТП-55.1B-700]
Details 		1d0027 9 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type В (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0028 / ТП-55.1С-700] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0028 / ТП-55.1С-700]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0028 / ТП-55.1С-700]
Details 		1d0028 9 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0029 / ТП-55A-700] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0029 / ТП-55A-700]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0029 / ТП-55A-700]
Details 		1d0029 6 325 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without stainless steel frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0030 / ТП-55B-700] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0030 / ТП-55B-700]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 700 mm, horizontal, D - 50 [Code number: 1d0030 / ТП-55B-700]
Details 		1d0030 6 325 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without stainless steel frame;
  • grille type В (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 760 700 66
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0031 / ТП-50.1A-900] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0031 / ТП-50.1A-900]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0031 / ТП-50.1A-900]
Details 		1d0031 12 025 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, stainless steel frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0032 / ТП-50.1B-900] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0032 / ТП-50.1B-900]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0032 / ТП-50.1B-900]
Details 		1d0032 12 025 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, stainless steel frame;
  • grille type B (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0033 / ТП-50.1С-900] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0033 / ТП-50.1С-900]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0033 / ТП-50.1С-900]
Details 		1d0033 12 025 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0034 / ТП-50A-900] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0034 / ТП-50A-900]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0034 / ТП-50A-900]
Details 		1d0034 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0035 / ТП-50B-900] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0035 / ТП-50B-900]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 900 mm, vertical, D - 50 [Code number: 1d0035 / ТП-50B-900]
Details 		1d0035 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type B (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 66
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0036 / ТП-55.1A-900] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0036 / ТП-55.1A-900]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0036 / ТП-55.1A-900]
Details 		1d0036 12 025 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, stainless steel frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0037 / ТП-55.1B-900] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0037 / ТП-55.1B-900]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0037 / ТП-55.1B-900]
Details 		1d0037 12 025 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, stainless steel frame;
  • grille type B (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0038 / ТП-55.1С-900] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0038 / ТП-55.1С-900]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0038 / ТП-55.1С-900]
Details 		1d0038 12 025 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0039 / ТП-55A-900] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0039 / ТП-55A-900]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0039 / ТП-55A-900]
Details 		1d0039 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, without stainless steel frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0040 / ТП-55B-900] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0040 / ТП-55B-900]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 900 mm, horizontal, D - 50 [Code number: 1d0040 / ТП-55B-900]
Details 		1d0040 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, the siphon is made of PP, without stainless steel frame;
  • grille type B (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 960 900 66

See also

%d0%a3%d1%81%d0%b8%d0%bb%d0%b8%d0%b2%d0%b0%d1%8e%d1%89%d0%b8%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Strengthen connecting elements
%d0%9f%d0%b5%d1%80%d0%b5%d1%85%d0%be%d0%b4%d1%8b %d0%bd%d0%b0 %d0%bf%d0%bb%d0%b0%d1%81%d1%82%d0%b8%d0%ba
PP-adapter Konfix etc.
%d0%a1%d0%be%d0%b5%d0%b4%d0%b8%d0%bd%d0%b8%d1%82%d0%b5%d0%bb%d1%8c%d0%bd%d1%8b%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Connecting elements

© Inrusstrade.ru 1999-2024. "Inrusstrade" Ltd. Copying and quoting is prohibited
