Tatpolymer Shower channels

Home→ Catalog→ Tatpolymer→ Tatpolymer Drainage→ Tatpolymer Shower channels

Tatpolimer shower channels are made from high quality raw materials and have a high throughput - it ranges from 0.4 l/s (or 24 l/m) to 0.8 l/s (or 48 l/m).

They differ in functionality. They can have a horizontal or vertical outlet. All shower channels are equipped with a "dry" mechanical trap seal or water seal for reliable isolation of premises from sewer fumes. The dry seal or water seal can be removed for cleaning.

A wide range of sizes (gutter length from 500 to 1000 mm) of shower channels Tatpolimer allows to mount them both in large rooms and in small ones.

Cases of shower channels Tatpolimer are made of ABS plastic. Grilles are made of stainless steel - they can be perforated or have a panel for laying tiles or natural stone.

The mounting feet are height adjustable.

Photo Name Article Price
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0001 / ТП-50.1A-500] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0001 / ТП-50.1A-500]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0001 / ТП-50.1A-500]
Details 		1d0001 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0002 / ТП-50.1B-500] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0002 / ТП-50.1B-500]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0002 / ТП-50.1B-500]
Details 		1d0002 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type В (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0003 / ТП-50.1С-500] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0003 / ТП-50.1С-500]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0003 / ТП-50.1С-500]
Details 		1d0003 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0004 / ТП-50A-500] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0004 / ТП-50A-500]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0004 / ТП-50A-500]
Details 		1d0004 4 871 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0005 / ТП-50B-500] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0005 / ТП-50B-500]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 500 mm, vertical, D - 50 [Code number: 1d0005 / ТП-50B-500]
Details 		1d0005 4 871 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type В (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 66
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0006 / ТП-55.1A-500] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0006 / ТП-55.1A-500]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0006 / ТП-55.1A-500]
Details 		1d0006 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0007 / ТП-55.1B-500] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0007 / ТП-55.1B-500]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0007 / ТП-55.1B-500]
Details 		1d0007 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type В (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0008 / ТП-55.1С-500] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0008 / ТП-55.1С-500]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0008 / ТП-55.1С-500]
Details 		1d0008 7 475 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave) , dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0009 / ТП-55A-500] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave) , dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0009 / ТП-55A-500]
Tatpolymer Shower channel without stainless steel frame, grate А (wave) , dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0009 / ТП-55A-500]
Details 		1d0009 4 871 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, siphon made of PP, without frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0010 / ТП-55B-500] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0010 / ТП-55B-500]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 500 mm, horizontal, D - 50 [Code number: 1d0010 / ТП-55B-500]
Details 		1d0010 4 871 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, siphon made of PP, without frame;
  • grille type В (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 560 500 66
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0011 / ТП-50.1A-600] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0011 / ТП-50.1A-600]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0011 / ТП-50.1A-600]
Details 		1d0011 8 450 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0012 / ТП-50.1B-600] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0012 / ТП-50.1B-600]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0012 / ТП-50.1B-600]
Details 		1d0012 8 450 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type В (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0013 / ТП-50.1С-600] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0013 / ТП-50.1С-600]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0013 / ТП-50.1С-600]
Details 		1d0013 8 450 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0014 / ТП-50A-600] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0014 / ТП-50A-600]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0014 / ТП-50A-600]
Details 		1d0014 5 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type А (wave);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 66
Photo Draft

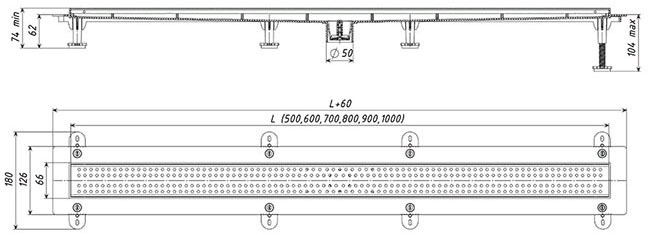

Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0015 / ТП-50B-600] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0015 / ТП-50B-600]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap, length 600 mm, vertical, D - 50 [Code number: 1d0015 / ТП-50B-600]
Details 		1d0015 5 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type В (straight);
  • dry trap;
  • vertical;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm>
50 660 600 66
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0016 / ТП-55.1A-600] Draft Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0016 / ТП-55.1A-600]
Tatpolymer Shower channel, stainless steel frame, grate А (wave), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0016 / ТП-55.1A-600]
Details 		1d0016 8 450 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, siphon made of PP, stainless steel frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0017 / ТП-55.1B-600] Draft Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0017 / ТП-55.1B-600]
Tatpolymer Shower channel, stainless steel frame, grate В (straight), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0017 / ТП-55.1B-600]
Details 		1d0017 8 450 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, siphon made of PP, stainless steel frame;
  • grille type В (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 67,5
Photo Draft
Photo Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0018 / ТП-55.1С-600] Draft Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0018 / ТП-55.1С-600]
Tatpolymer Shower channel, stainless steel frame, grate С (slotted, under tiles), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0018 / ТП-55.1С-600]
Details 		1d0018 8 450 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, siphon made of PP, stainless steel frame;
  • grille type С (slotted, under tiles);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 67,5
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0019 / ТП-55A-600] Draft Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0019 / ТП-55A-600]
Tatpolymer Shower channel without stainless steel frame, grate А (wave), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0019 / ТП-55A-600]
Details 		1d0019 5 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type А (wave);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 66
Photo Draft
Photo Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0020 / ТП-55B-600] Draft Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0020 / ТП-55B-600]
Tatpolymer Shower channel without stainless steel frame, grate В (straight), dry trap and water trap seal, length 600 mm, horizontal, D - 50 [Code number: 1d0020 / ТП-55B-600]
Details 		1d0020 5 750 rub

Purpose of application:

  • For draining water into the sewer system from floor level
  • For bathrooms and showers
  • For swimming pools
  • For a bath

Characteristics:

  • the grate is made of stainless steel, the body is made of ABS plastic, without frame;
  • grille type В (straight);
  • dry trap and water trap seal;
  • horizontal;
  • capacity: 24 l/m.

Maximum ambient temperature: +90°С.

Minimum ambient temperature: -50°C.

Maximum medium temperature: +85°С (possible short-term increase to +100°С).

Service life: 50 years.

Weight: 1.6 kg.

Maximum load: 300 kg.

Technical characteristics

Diameter Length of channel Gutter length Gutter width
mm mm mm mm
50 660 600 66

See also

%d0%a3%d1%81%d0%b8%d0%bb%d0%b8%d0%b2%d0%b0%d1%8e%d1%89%d0%b8%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Strengthen connecting elements
%d0%a1%d0%be%d0%b5%d0%b4%d0%b8%d0%bd%d0%b8%d1%82%d0%b5%d0%bb%d1%8c%d0%bd%d1%8b%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Connecting elements
%d0%9f%d0%b5%d1%80%d0%b5%d1%85%d0%be%d0%b4%d1%8b %d0%bd%d0%b0 %d0%bf%d0%bb%d0%b0%d1%81%d1%82%d0%b8%d0%ba
PP-adapter Konfix etc.

© Inrusstrade.ru 1999-2024. "Inrusstrade" Ltd. Copying and quoting is prohibited
