VALTEC crosses of polypropylene

Home→ Catalog→ VALTEC→ Polypropylene system→ Welding crosses

VALTEC crosses of polypropylene are used for the installation of piping systems in various directions, namely:

  • heating;
  • hot water supply;
  • cold water supply (including drinking).

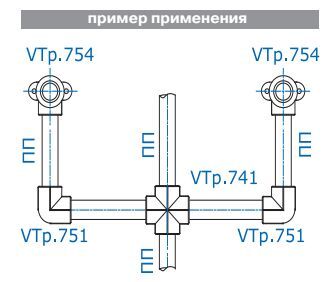

They are designed to connect four pipes with the same or different diameters, which allows the intersection of pipelines lying in the same plane or in two mutually perpendicular planes without the use of additional fittings - this connection looks more aesthetically pleasing in comparison with options that use other fittings.

Photo Name Article Price
Photo Draft
Photo VALTEC PPR Welding cross, d - 20 [Code number: VTp.741.0.020] Draft VALTEC PPR Welding cross, d - 20 [Code number: VTp.741.0.020]
VALTEC PPR Welding cross, d - 20 [Code number: VTp.741.0.020]
Details 		VTp.741.0.020 37 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For branching the pipeline

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounting by socket welding



d A B С Weight
mm mm mm mm kg/pc
20 52 15 26 0,024

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Welding cross, d - 25 [Code number: VTp.741.0.025] Draft VALTEC PPR Welding cross, d - 25 [Code number: VTp.741.0.025]
VALTEC PPR Welding cross, d - 25 [Code number: VTp.741.0.025]
Details 		VTp.741.0.025 55 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For branching the pipeline

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounting by socket welding



d A B С Weight
mm mm mm mm kg/pc
25 60 16,5 30 0,036

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Welding cross, d - 32 [Code number: VTp.741.0.032] Draft VALTEC PPR Welding cross, d - 32 [Code number: VTp.741.0.032]
VALTEC PPR Welding cross, d - 32 [Code number: VTp.741.0.032]
Details 		VTp.741.0.032 98 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For branching the pipeline

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounting by socket welding



d A B С Weight
mm mm mm mm kg/pc
32 72 18,5 36 0,061

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Welding cross, d - 40 [Code number: VTp.741.0.040] Draft VALTEC PPR Welding cross, d - 40 [Code number: VTp.741.0.040]
VALTEC PPR Welding cross, d - 40 [Code number: VTp.741.0.040]
Details 		VTp.741.0.040 165 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For branching the pipeline

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounting by socket welding



d A B С Weight
mm mm mm mm kg/pc
40 89 21 44,5 0,119

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Welding cross, d - 50 [Code number: VTp.741.0.050] Draft VALTEC PPR Welding cross, d - 50 [Code number: VTp.741.0.050]
VALTEC PPR Welding cross, d - 50 [Code number: VTp.741.0.050]
Details 		VTp.741.0.050 307 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For branching the pipeline

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounting by socket welding



d A B С Weight
mm mm mm mm kg/pc
50 105,6 24 52,8 0,204

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Coplanar fitting cross, d - 20 [Code number: VTp.775.0.020] Draft VALTEC PPR Coplanar fitting cross, d - 20 [Code number: VTp.775.0.020]
VALTEC PPR Coplanar fitting cross, d - 20 [Code number: VTp.775.0.020]
Details 		VTp.775.0.020 104 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • To perform the intersection of polypropylene pipelines lying in the same plane, without the use of additional fittings

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounted by socket welding
d A Weight
mm mm kg/pc
20 61 0,035

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Bidirectional welding cross, d - 20 [Code number: VTp.778.0.020] Draft VALTEC PPR Bidirectional welding cross, d - 20 [Code number: VTp.778.0.020]
VALTEC PPR Bidirectional welding cross, d - 20 [Code number: VTp.778.0.020]
Details 		VTp.778.0.020 42 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For connecting pipelines in two mutually perpendicular planes

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounted by socket welding
d A Н Weight
mm mm mm kg/pc
20 61 46 0,023

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Bidirectional welding cross, d - 25 [Code number: VTp.778.0.025] Draft VALTEC PPR Bidirectional welding cross, d - 25 [Code number: VTp.778.0.025]
VALTEC PPR Bidirectional welding cross, d - 25 [Code number: VTp.778.0.025]
Details 		VTp.778.0.025 62 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For connecting pipelines in two mutually perpendicular planes

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounted by socket welding
d A Н Weight
mm mm mm kg/pc
25 72 50 0,035

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
Photo Draft
Photo VALTEC PPR Bidirectional welding cross, d - 32 [Code number: VTp.778.0.032] Draft VALTEC PPR Bidirectional welding cross, d - 32 [Code number: VTp.778.0.032]
VALTEC PPR Bidirectional welding cross, d - 32 [Code number: VTp.778.0.032]
Details 		VTp.778.0.032 86 rub

Application purpose:

  • For cold and hot water systems
  • For heating
  • For connecting pipelines in two mutually perpendicular planes

Characteristics:

  • Nominal pressure up to 25 bar
  • The maximum temperature of a working environment is up to +95 ºС
  • Minimum storage temperature up to -30 ºС
  • Mounted by socket welding
d A Н Weight
mm mm mm kg/pc
32 80 54 0,056

Download data sheet: Fittings for VALTEC PPR Fittings for VALTEC PPR
