Valtec heat meters

Home→ Catalog→ VALTEC→ Measuring device→ Heat meters

Heat meters are accurate and reliable small-sized devices that are designed to take into account heat consumption with a separate input to the heat supply system.

The heat meter includes a heat meter, which is a multifunctional electronic device that processes and stores measurement results, as well as allows you to organize remote reading of readings.

Service life 12 years.

Photo Наименование Article Цена
Photo VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and pulse input and output block (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-СИ-П]
VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and pulse input and output block (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-СИ-П]
Details 		VHM-T-15/1,5-СИ-П 6 938 rub
Photo VALTEC Apartment heat meter, with tachometer flowmeter, RS-485 (return pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-С-О]
VALTEC Apartment heat meter, with tachometer flowmeter, RS-485 (return pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-С-О]
Details 		VHM-T-15/1,5-С-О 6 938 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 1,5 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel RS-485.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 3.1 m3/hour.

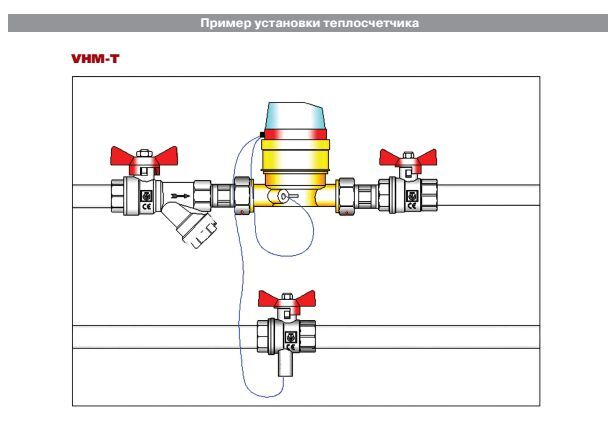

Installation example

Documentation

Download product data sheet: VALTEC Heat meter is apartment without archive

Download product data sheet: VALTEC Heat meter is apartment with archive
Photo VALTEC Apartment heat meter, with tachometer flowmeter, R-485 (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-С-П]
VALTEC Apartment heat meter, with tachometer flowmeter, R-485 (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-С-П]
Details 		VHM-T-15/1,5-С-П 6 938 rub
Photo VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and pulse input and output unit (to the supply pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-CИ-П]
VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and pulse input and output unit (to the supply pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-CИ-П]
Details 		VHM-T-20/2,5-CИ-П 7 086 rub
Photo VALTEC Heat meter, with tachometer flowmeter, RS483 (to supply pipe), 2,5 m3/hour [Code number: VHM-T-20/2,5/RS/O]
VALTEC Heat meter, with tachometer flowmeter, RS483 (to supply pipe), 2,5 m3/hour [Code number: VHM-T-20/2,5/RS/O]
Details 		VHM-T-20/2,5/RS/O
Photo VALTEC Heat meter, with tachometer flowmeter, RS-485 (to supply pipe), 2,5 m3/hour [Code number: VHM-T-20/2,5/RS/P]
VALTEC Heat meter, with tachometer flowmeter, RS-485 (to supply pipe), 2,5 m3/hour [Code number: VHM-T-20/2,5/RS/P]
Details 		VHM-T-20/2,5/RS/P
Photo VALTEC Heat meter with tachometer flowmeter, M-BUS with pulse outlet (for installation on the return pipeline) 2,5 m3/hour [Code number: VHM-T-20/2,5-МИ-О]
VALTEC Heat meter with tachometer flowmeter, M-BUS with pulse outlet (for installation on the return pipeline) 2,5 m3/hour [Code number: VHM-T-20/2,5-МИ-О]
Details 		VHM-T-20/2,5-МИ-О 7 103 rub
Photo VALTEC Heat meter with tachometer flowmeter, M-BUS with pulse outlet (to supply pipe) 2,5 m3/hour [Code number: VHM-T-20/2,5-МИ-П]
VALTEC Heat meter with tachometer flowmeter, M-BUS with pulse outlet (to supply pipe) 2,5 m3/hour [Code number: VHM-T-20/2,5-МИ-П]
Details 		VHM-T-20/2,5-МИ-П 7 103 rub
Photo VALTEC Apartment heat meter, with tachometer flowmeter (return pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-О]
VALTEC Apartment heat meter, with tachometer flowmeter (return pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-О]
Details 		VHM-T-20/2,5-О 6 227 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two temperature sensors (material - platinum) Pt 1000 (M10 adapters are available), an electronic type heat meter (memory is non-volatile), operating hours;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 2.5 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Installation example

Documentation

Download product data sheet: VALTEC Heat meter is apartment without archive

Download product data sheet: VALTEC Heat meter is apartment with archive
Photo VALTEC Apartment heat meter, with tachometer flow meter (to the supply pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-П]
VALTEC Apartment heat meter, with tachometer flow meter (to the supply pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-П]
Details 		VHM-T-20/2,5-П 6 227 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 2.5 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Installation example

Documentation

Download product data sheet: VALTEC Heat meter is apartment without archive

Download product data sheet: VALTEC Heat meter is apartment with archive
Photo VALTEC Heat meter, with tachometer flowmeter, RS-485 (for installation on the return pipeline) 2,5 m3/hour [Code number: VHM-T-20/2,5-С-О]
VALTEC Heat meter, with tachometer flowmeter, RS-485 (for installation on the return pipeline) 2,5 m3/hour [Code number: VHM-T-20/2,5-С-О]
Details 		VHM-T-20/2,5-С-О 7 086 rub
Photo VALTEC Heat meter, with tachometer flowmeter, RS-485 (to supply pipe) 2,5 m3/hour [Code number: VHM-T-20/2,5-С-П]
VALTEC Heat meter, with tachometer flowmeter, RS-485 (to supply pipe) 2,5 m3/hour [Code number: VHM-T-20/2,5-С-П]
Details 		VHM-T-20/2,5-С-П 7 086 rub
Photo (NO LONGER PRODUCED) - VALTEC Heat distributor [Code number: VT.QVERT.P1.0]
(NO LONGER PRODUCED) - VALTEC Heat distributor [Code number: VT.QVERT.P1.0]
Details 		VT.QVERT.P1.0
Photo VALTEC Adapter for heat meter temperature sensor, M10 [Code number: VTr.434.N.M10]
VALTEC Adapter for heat meter temperature sensor, M10 [Code number: VTr.434.N.M10]
Details 		VTr.434.N.M10 92 rub
Photo VALTEC Qcaloric AMR + WB distributor, P2, 2-t / d, C-mode (C1) [Code number: НСА5 0008 В3С3 00000]
VALTEC Qcaloric AMR + WB distributor, P2, 2-t / d, C-mode (C1) [Code number: НСА5 0008 В3С3 00000]
Details 		НСА5 0008 В3С3 00000
