Valtec heat meters

Heat meters are accurate and reliable small-sized devices that are designed to take into account heat consumption with a separate input to the heat supply system.

The heat meter includes a heat meter, which is a multifunctional electronic device that processes and stores measurement results, as well as allows you to organize remote reading of readings.

Service life 12 years.

Photo Name Article Price
VALTEC Ultrasonic heat meter, RS-485, 4 pulse outputs, 1.5 m3/h (for supply pipe) [Code number: TCY-15.15.R.I.00.G]
Details
TCY-15.15.R.I.00.G 5 602 rub
VALTEC Ultrasonic heat meter, RS-485, 4 pulse outputs, 1.5 m3/h (for return flow) [Code number: TCY-15.15.R.I.00.H]
Details
TCY-15.15.R.I.00.H 5 602 rub
VALTEC Apartment heat meter, with tachometer flow meter, M-BUS and imp. out (on the return pipe), 0.6 m3/hour [Code number: VHM-T-15/0,6-МИ-О]
Details
VHM-T-15/0,6-МИ-О 6 353 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0,6 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel M-BUS and pulse output.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 1,25 m3/hour.

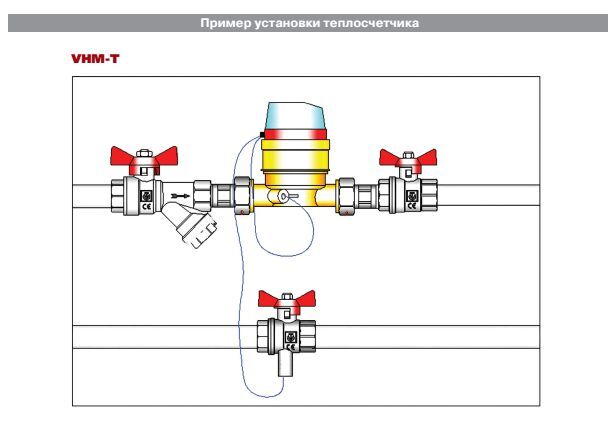

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-МИ-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-МИ-О VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flow meter, M-BUS and imp. out (on giving tr.), 0,6 m3/hour [Code number: VHM-T-15/0,6-МИ-П]
Details
VHM-T-15/0,6-МИ-П 6 353 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0,6 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel M-BUS and pulse output.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 1,25 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-МИ-П VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-МИ-П VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter with a tachometric flowmeter, M-BUS (for direct pipe circuit), 0,6 m3/hour (price on request) [Code number: VHM-T-15/0,6-М-П]
Details
VHM-T-15/0,6-М-П
VALTEC Apartment heat meter, with tachometric flow meter (for return pipe), 0.6 m3/h [Code number: VHM-T-15/0,6-О]
Details
VHM-T-15/0,6-О 5 558 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two temperature sensors (material - platinum) Pt 1000 (M10 adapters are available), an electronic type heat meter (memory is non-volatile), operating hours;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0.6 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-О VALTEC Heat meter is apartment with archive

VALTEC Heat meter is apartment, with a tachometric flowmeter (to the supply pipeline), 0.6 m3/hour [Code number: VHM-T-15/0,6-П]
Details
VHM-T-15/0,6-П 5 558 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0.6 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-П VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-П VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and a block of pulse inputs and outputs (for return pipe), 0.6 m3/hour [Code number: VHM-T-15/0,6-СИ-О]
Details
VHM-T-15/0,6-СИ-О 6 339 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0.6 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel RS-485 and block of impulse inputs/outputs.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 1,25 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-СИ-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-СИ-О VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with a tachometric flowmeter, with RS-485 and a block of pulse inputs and outputs (per delivery pipe), 0.6 m3/hour [Code number: VHM-T-15/0,6-СИ-П]
Details
VHM-T-15/0,6-СИ-П 6 339 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0.6 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel RS-485 and block of impulse inputs/outputs.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 1,25 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-СИ-П VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-СИ-П VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, RS-485 (for the return pipe), 0.6 m3/hour [Code number: VHM-T-15/0,6-С-О]
Details
VHM-T-15/0,6-С-О 6 337 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0,6 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel RS-485.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 1,25 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-С-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-С-О VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, RS-485 (to the supply pipe), 0.6 m3/h [Code number: VHM-T-15/0,6-С-П]
Details
VHM-T-15/0,6-С-П 6 337 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 0,6 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel RS-485.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 1,25 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/0,6-С-П VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/0,6-С-П VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, M-BUS and pulse output (for return flow), 1.5 m3/h [Code number: VHM-T-15/1,5-МИ-О]
Details
VHM-T-15/1,5-МИ-О 6 324 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 1,5 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel M-BUS and pulse output.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 3.1 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/1,5-МИ-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/1,5-МИ-О VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, M-BUS and pulse output (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-МИ-П]
Details
VHM-T-15/1,5-МИ-П 6 324 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 1,5 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel M-BUS and pulse output.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 3.1 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/1,5-МИ-П VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/1,5-МИ-П VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter (for return pipe), 1.5 m3/hour [Code number: VHM-T-15/1,5-О]
Details
VHM-T-15/1,5-О 5 529 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two temperature sensors (material - platinum) Pt 1000 (M10 adapters are available), an electronic type heat meter (memory is non-volatile), operating hours;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 1.5 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Installation example

Documentation

Download product data sheet: VHM-T-15/1,5-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/1,5-О VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-П]
Details
VHM-T-15/1,5-П 5 529 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 1.5 m3/h;
  • installed on the supply pipeline;
  • the average service life is 12 years.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Installation example

Documentation

Download product data sheet: VHM-T-15/1,5-П VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/1,5-П VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and pulse input and output block (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-СИ-П]
Details
VHM-T-15/1,5-СИ-П 6 308 rub
VALTEC Apartment heat meter, with tachometer flowmeter, RS-485 (return pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-С-О]
Details
VHM-T-15/1,5-С-О 6 308 rub

Purpose of application:

  • To account for thermal energy
  • For water heating systems
  • For hot water supply

Characteristics:

  • as part of a single-jet tachometric flowmeter (brass nickel-plated body), two platinum temperature sensors Pt 1000 (M10 adapters are available), an electronic heat meter (non-volatile memory), hours of operation;
  • can be equipped with an archive with a memory depth of up to 8 years;
  • corresponds to GOST R 51649;
  • accuracy class B;
  • the calibration interval is 4 years;
  • nominal water flow: 1,5 m3/h;
  • installed on the return pipeline;
  • the average service life is 12 years.

Nominal diameter: DN15.

Connecting thread: 1/2", 3/4".

There is a communication channel RS-485.

Working pressure: 16 bar.

Working temperature: from +5 to +90 °С.

Capacity: 3.1 m3/hour.

Installation example

Documentation

Download product data sheet: VHM-T-15/1,5-С-О VALTEC Heat meter is apartment without archive

Download product data sheet: VHM-T-15/1,5-С-О VALTEC Heat meter is apartment with archive

VALTEC Apartment heat meter, with tachometer flowmeter, R-485 (to the supply pipe), 1.5 m3/h [Code number: VHM-T-15/1,5-С-П]
Details
VHM-T-15/1,5-С-П 6 308 rub
VALTEC Apartment heat meter, with tachometer flowmeter, with RS-485 and pulse input and output unit (to the supply pipe), 2.5 m3/h [Code number: VHM-T-20/2,5-CИ-П]
Details
VHM-T-20/2,5-CИ-П 6 442 rub
VALTEC Heat meter, with tachometer flowmeter, RS483 (to supply pipe), 2,5 m3/hour [Code number: VHM-T-20/2,5/RS/O]
Details
VHM-T-20/2,5/RS/O

See also
