Pipes made of cross-linked polyethylene Sinicon Thermoline

Home→ Catalog→ SINIKON→ Sinikon Thermoline→ Pipes

Cross-linked polyethylene pipes quickly gained popularity due to the favorable price-quality ratio.

Sinicon launched a new line of cross-linked polyethylene pipes for heating and water supply systems. Thermoline pipes are made of high density polyethylene with crosslinking by the silane method.

The minimum crosslinking of PE-X pipes can be 60%, 65% or 70%. The degree of crosslinking does not significantly affect the technical characteristics of the pipes.

Main advantages:

  • low hydraulic resistance;
  • elasticity;
  • not susceptible to corrosion and overgrowing;
  • the presence of temperature memory;
  • chemical and electrical inertness;
  • resistance to freezing water;
  • ease of installation.

Outside the pipes are covered with a layer of EVOH (ethylene vinyl alcohol), which prevents the diffusion of oxygen molecules into the pipe, which reduces the overgrowth of the bore and wear of heating equipment due to oxidative processes.

Pipes with diameters of 16 and 20 mm are available. The wall thickness is 2.0 mm. Pipes are supplied in bays.

Connection type: pressing.

Pipe РЕ-RT, Type II Pipe PE-RT, SDR8 Pipe PE-Xb EVOH, SDR 8 Pipe PE-Xb EVOH, SDR 7.4 Pipe PE-Xb EVOH, SDR 10 Pipe PERT, SDR10
Article Diameter Length, m Article Diameter Length, m Article Diameter Length, m Article Diameter Length, m Article Diameter Length, m Article Diameter Length, m
PRT162010EII 16*2.0 100 PT162010 16*2.0 100 PX162010 16*2.0 100 PX162210 16*2.0 100 PX202010 20*2.0 100 PT202010 20*2.0 100
PRT162020EII 16*2.0 200 PT162020 16*2.0 200 PX162020 16*2.0 200 PX162220 16*2.0 200 PX202020 20*2.0 200 PT202020 20*2.0 200
PRT162030EII 16*2.0 300 PX162030 16*2.0 300 PX162230 16*2.0 300
PRT162040EII 16*2.0 400 PT162040 16*2.0 400 PX162040 16*2.0 400 PX162240 16*2.0 400
Photo Name Article Price
Photo SINIKON PE-RT Pipe, SDR8/S3.5, d - 16*2.0, length 100 m, price for 1 m [Code number: PT162010]
SINIKON PE-RT Pipe, SDR8/S3.5, d - 16*2.0, length 100 m, price for 1 m [Code number: PT162010]
Details 		PT162010 34 rub
Photo SINIKON PE-RT Pipe, SDR8/S3.5, d - 16*2.0, length 200 m, price for 1 m [Code number: PT162020]
SINIKON PE-RT Pipe, SDR8/S3.5, d - 16*2.0, length 200 m, price for 1 m [Code number: PT162020]
Details 		PT162020 34 rub
Photo SINIKON PE-RT Pipe, SDR8/S3.5, d - 16*2.0, length 400 m, price for 1 m [Code number: PT162040]
SINIKON PE-RT Pipe, SDR8/S3.5, d - 16*2.0, length 400 m, price for 1 m [Code number: PT162040]
Details 		PT162040 34 rub
Photo SINIKON PERT Pipe, SDR10/S4.5, d - 20*2.0, length 100 m, price for 1 m [Code number: PT202010]
SINIKON PERT Pipe, SDR10/S4.5, d - 20*2.0, length 100 m, price for 1 m [Code number: PT202010]
Details 		PT202010 45 rub
Photo SINIKON PERT Pipe, SDR10/S4.5, d - 20*2.0, length 200 m, price for 1 m [Code number: PT202020]
SINIKON PERT Pipe, SDR10/S4.5, d - 20*2.0, length 200 m, price for 1 m [Code number: PT202020]
Details 		PT202020 45 rub
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 100 m, price for 1 m [Code number: PX162010]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 100 m, price for 1 m [Code number: PX162010]
Details 		PX162010 97 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.0 12 red 100

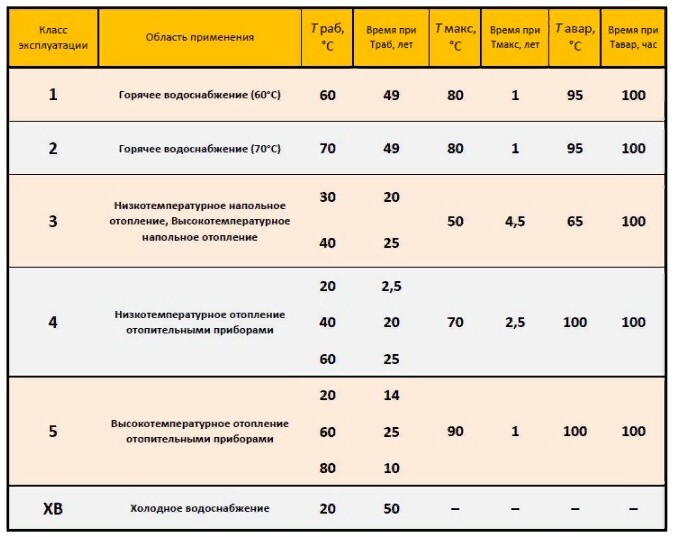

Table of classes of operation of polymer pipelines PEX and PERT
Photo (NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 100 m, price for 1 m [Code number: PX162010V]
(NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 100 m, price for 1 m [Code number: PX162010V]
Details 		PX162010V

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Water volume Service class / Working pressure Length Weight Weight with water
mm mm mm l/m   m g/m g/m
16 2 12 0.113 1-2-4 / 1.0 MPa
5 / 0.8 MPa		 100 91 203

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 200 m, price for 1 m [Code number: PX162020]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 200 m, price for 1 m [Code number: PX162020]
Details 		PX162020 97 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.0 12 red 200

Table of classes of operation of polymer pipelines PEX and PERT
Photo (NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 200 m, price for 1 m [Code number: PX162020V]
(NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 200 m, price for 1 m [Code number: PX162020V]
Details 		PX162020V

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Water volume Service class / Working pressure Length Weight Weight with water
mm mm mm l/m   m g/m g/m
16 2 12 0.113 1-2-4 / 1.0 MPa
5 / 0.8 MPa		 200 91 203

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 300 m, price for 1 m [Code number: PX162030]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 300 m, price for 1 m [Code number: PX162030]
Details 		PX162030 97 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.0 12 red 300

Table of classes of operation of polymer pipelines PEX and PERT
Photo (NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 300 m, price for 1 m [Code number: PX162030V]
(NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 300 m, price for 1 m [Code number: PX162030V]
Details 		PX162030V

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Water volume Service class / Working pressure Length Weight Weight with water
mm mm mm l/m   m g/m g/m
16 2.0 12 0.113 1-2-4 / 1.0 MPa
5 / 0.8 MPa		 300 91 203

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 400 m, price for 1 m [Code number: PX162040]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 8/S3.5, d - 16*2.0, length 400 m, price for 1 m [Code number: PX162040]
Details 		PX162040 97 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.0 12 red 400

Table of classes of operation of polymer pipelines PEX and PERT
Photo (NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 400 m, price for 1 m [Code number: PX162040V]
(NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR8/S3.5, d - 16*2.0, length 400 m, price for 1 m [Code number: PX162040V]
Details 		PX162040V

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Water volume Service class / Working pressure Length Weight Weight with water
mm mm mm l/m   m g/m g/m
16 2.0 12 0,113 1-2-4 / 1.0 MPa
5 / 0.8 MPa		 400 91 203

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 100 m, price for 1 m [Code number: PX162210]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 100 m, price for 1 m [Code number: PX162210]
Details 		PX162210 102 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.2 12 Gray 100

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 200 m, price for 1 m [Code number: PX162220]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 200 m, price for 1 m [Code number: PX162220]
Details 		PX162220 102 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.2 16 Gray 200

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 300 m, price for 1 m [Code number: PX162230]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 300 m, price for 1 m [Code number: PX162230]
Details 		PX162230 102 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2,2 12 gray 300

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 400 m, price for 1 m [Code number: PX162240]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 7.4/S3.2, d - 16*2.2, length 400 m, price for 1 m [Code number: PX162240]
Details 		PX162240 102 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
16 2.2 12 gray 400

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 10/S4.5, d - 20*2.0, length 100 m, price for 1 m [Code number: PX202010]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 10/S4.5, d - 20*2.0, length 100 m, price for 1 m [Code number: PX202010]
Details 		PX202010 130 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
20 2.0 16 red 100

Table of classes of operation of polymer pipelines PEX and PERT
Photo (NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR10/S4.5, d - 20*2.0, length 100 m, price for 1 m [Code number: PX202010V]
(NO LONGER PRODUCED) - SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR10/S4.5, d - 20*2.0, length 100 m, price for 1 m [Code number: PX202010V]
Details 		PX202010V

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Water volume Service class / Working pressure Length Weight Weight with water
mm mm mm l/m   m g/m g/m
20 2 16 0,201 1-2-4 / 0,8 MPa
5 / 0,6 MPa		 100 116 317

Table of classes of operation of polymer pipelines PEX and PERT
Photo SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 10/S4.5, d - 20*2.0, length 200 m, price for 1 m [Code number: PX202020]
SINIKON THERMOLINE PE-Xb EVOH Pipe, SDR 10/S4.5, d - 20*2.0, length 200 m, price for 1 m [Code number: PX202020]
Details 		PX202020 130 rub

Application purposes:

  • For cold and hot water systems
  • For heating, including underfloor heating systems

Material: Silane crosslinked high density PE, EVOH oxygen barrier layer.

The pipe complies with GOST 32415.

Coefficient of thermal expansion: 0.14 - 0.20 mm/m*K.

Thermal conductivity: 0.38 W/m*K.

Roughness: 0.007 mm.

Oxygen permeability: & le; 3.6 mg/m2*day at 80°C.

Characteristic:

  • low hydraulic resistance;
  • not susceptible to corrosion and fouling;
  • chemical and electrical inertness;
  • high elasticity;
  • temperature memory available;
  • pipes do not collapse when water freezes;
  • warranty period - 10 years.
Outside diameter Wall thickness Inside diameter Colour Length
mm mm mm   m
20 2.0 16 red 200

Table of classes of operation of polymer pipelines PEX and PERT

See also

%d0%a1%d0%be%d0%b5%d0%b4%d0%b8%d0%bd%d0%b8%d1%82%d0%b5%d0%bb%d1%8c%d0%bd%d1%8b%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Connecting elements
%d0%9f%d0%b5%d1%80%d0%b5%d1%85%d0%be%d0%b4%d1%8b %d0%bd%d0%b0 %d0%bf%d0%bb%d0%b0%d1%81%d1%82%d0%b8%d0%ba
PP-adapter Konfix etc.
%d0%a3%d1%81%d0%b8%d0%bb%d0%b8%d0%b2%d0%b0%d1%8e%d1%89%d0%b8%d0%b5 %d0%a5%d0%be%d0%bc%d1%83%d1%82%d1%8b
Strengthen connecting elements

© Inrusstrade.ru 1999-2024. "Inrusstrade" Ltd. Copying and quoting is prohibited
