VALTEC PPR Wall plate, female, d - 20, G - 1/2" [Code number: VTp.754.0.02004] | Inrusstrade

Article: VTp.754.0.02004

Price: 186 rub

Photo VALTEC PPR Wall plate, female, d - 20, G - 1/2" [Code number: VTp.754.0.02004]

Draft VALTEC PPR Wall plate, female, d - 20, G - 1/2" [Code number: VTp.754.0.02004]

Application purpose:

For cold and hot water systems
For heating

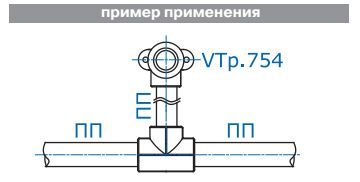

For connection to a polypropylene pipeline of a sanitary faucet or other component of an engineering system with a threaded connection

Characteristics:

Fitting thread - female thread in accordance with GOST 6357
Nominal pressure up to 25 bar
The maximum temperature of a working environment is up to +95 ºС
Minimum storage temperature up to -30 ºС

d	G	A	B	С	Weight
mm	mm	mm	mm	mm	kg/pc
20	1/2"	26,5	15	31,5	0,055

Download data sheet: Fittings for VALTEC PPR
