Accessories of Valtec pipelines and valves

This product group includes the following products:

  • Special purpose ball valves – this type of valves includes ball valves for connecting test equipment, drain valves, valves combined with other components of utility circuits etc.
  • Flow inverters for filter.
  • Shut-off valve that provide installation and disassembly of the automatic air vent without emptying the system.
  • Decorative plates.
  • Handles for ball valve.
Photo Name Article Price
VALTEC Steel handle for the valve PERFECT, d - 3/4" [Code number: VT.320.S.05]
Details
VT.320.S.05 55 rub

Application purpose:

  • For ball valves (VALTEC PERFECT series)

Characteristics:

  • Handle type: flag;
  • Manufactured from chrome-plated steel plate (thickness increased);
  • There is a heat-insulating PVC coating (color: black);
  • It is a spare part.

Features of PERFECT ball valves:

  • Type: full bore;
  • Recommended for cases where bending moments can be transmitted to the reinforcement;
  • The shutter with the body is made of brass CW602N;
  • Suitable for repair;
  • Thread length increased;
  • Thread type: female/female.

Size: 3/4".

VALTEC Steel handle for the valve PERFECT, d - 1" [Code number: VT.320.S.06]
Details
VT.320.S.06 88 rub

Application purpose:

  • For ball valves (VALTEC PERFECT series)

Characteristics:

  • Handle type: flag;
  • Manufactured from chrome-plated steel plate (thickness increased);
  • There is a heat-insulating PVC coating (color: black);
  • It is a spare part.

Features of PERFECT ball valves:

  • Type: full bore;
  • Recommended for cases where bending moments can be transmitted to the reinforcement;
  • The shutter with the body is made of brass CW602N;
  • Suitable for repair;
  • Thread length increased;
  • Thread type: female/female.

Size: 1".

VALTEC Steel handle for the valve PERFECT, d - 1 1/4" [Code number: VT.320.S.07]
Details
VT.320.S.07 137 rub

Application purpose:

  • For ball valves (VALTEC PERFECT series)

Characteristics:

  • Handle type: flag;
  • Manufactured from chrome-plated steel plate (thickness increased);
  • There is a heat-insulating PVC coating (color: black);
  • It is a spare part.

Features of PERFECT ball valves:

  • Type: full bore;
  • Recommended for cases where bending moments can be transmitted to the reinforcement;
  • The shutter with the body is made of brass CW602N;
  • Suitable for repair;
  • Thread length increased;
  • Thread type: female/female.

Size: 1 1/4".

VALTEC Steel handle for the valve PERFECT, d - 1 1/2" [Code number: VT.320.S.08]
Details
VT.320.S.08 184 rub

Application purpose:

  • For ball valves (VALTEC PERFECT series)

Characteristics:

  • Handle type: flag;
  • Manufactured from chrome-plated steel plate (thickness increased);
  • There is a heat-insulating PVC coating (color: black);
  • It is a spare part.

Features of PERFECT ball valves:

  • Type: full bore;
  • Recommended for cases where bending moments can be transmitted to the reinforcement;
  • The shutter with the body is made of brass CW602N;
  • Suitable for repair;
  • Thread length increased;
  • Thread type: female/female.

Size: 1 1/2".

VALTEC Valve handle for VT.252 [Code number: VT.420.R.04]
Details
VT.420.R.04 269 rub

Application purpose:

  • For water ball valves (VALTEC BASE series)

Characteristics:

  • There is a flywheel with a planetary gear, due to which a sharp opening or closing of the tap is impossible;
  • Closing or opening of the ball valve occurs when the handwheel is rotated 180°;
  • Is a spare part;
  • Body and handle cover made of ABS plastic;
  • Color: red;
  • The handle is shockproof;
  • Nylon (polyamide) is used to make planetary gears.
VALTEC Drainage crane, d - 1/2" [Code number: VT.430.N.04]
Details
VT.430.N.04 407 rub
VALTEC Drainage crane, d - 1/4" [Code number: VT.435.N.02]
Details
VT.435.N.02 354 rub
VALTEC Rosette (chrome-​plated) [Code number: VT.514.C.04]
Details
VT.514.C.04 26 rub
VALTEC Elongated handle for ball valve [Code number: VT.520.R.04]
Details
VT.520.R.04 252 rub

Application purpose:

  • For ball valves and other valves

Characteristics:

  • The stem is elongated;
  • They are used in cases where the control of conventional fittings is complicated for one reason or another (for example, in confined spaces or when the pipeline is closed with a removable panel);
  • Is a spare part;
  • The handle is made of silumin, covered with red epoxy enamel;
  • Handle type: "butterfly";
  • The length of the handle extension is 56 mm;
  • Brass extension rod included.
VALTEC Adapter union union with drainage valve, Rp-R, d - 1" [Code number: VT.537.N.06]
Details
VT.537.N.06 1 809 rub
VALTEC shut-off valve, d - 3/8" [Code number: VT.539.N.03]
Details
VT.539.N.03 105 rub
VALTEC shut-off valve, d - 1/2" [Code number: VT.539.N.04]
Details
VT.539.N.04 163 rub
VALTEC Union nut with fitting for VT.430 drain valve, euro cone, d - 3/4" [Code number: VTr.654.NE.0510]
Details
VTr.654.NE.0510 44 rub

Application purpose:

  • For drain valve VT.430
  • For metal-plastic pipes

Characteristics:

  • It is a spare part in case of loss or damage to a standard part;
  • Removable plastic fitting;
  • Production material: ABS (technical thermoplastic resin with high impact resistance);
  • Painted black;
  • There is a Eurocone.

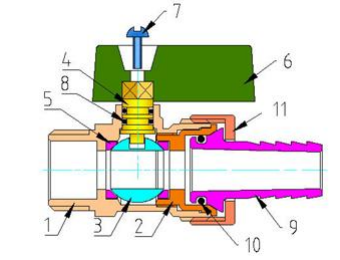

Construction of the crane VT.430:

  • 1. Nickel-plated brass body CW617N;
  • 2. CW617N brass bushing;
  • 3. Chrome plated brass ball valve CW617N;
  • 4. CW614N brass stem;
  • 5. Teflon PTFE seat rings;
  • 6. PA6 nylon handle;
  • 7. Galvanized steel screw;
  • 8. EPDM packing rings;
  • 9. Fitting made of ABS plastic;
  • 10. Nipple seal made of EPDM;
  • 11. Union nut made of ABS plastic.

Size: 3/4".
