The installation of connection sets RAUTITAN to radiators is implemented in several of the following steps (for example, the installation L-shaped connecting legs):
1. Transfer the leg length including the insertion depth of the Eurocone receiver to the pipe (see fig. 1);
2. Cut the radiator elbow connection sets RAUTITAN square with a roller pipe cutter for stainless steel pipes or a suitable saw and deburr;
3. Push the thermal and acoustic insulation onto the radiator elbow connection sets RAUTITAN (not indicated in the illustrations);
4. Put the screw connection onto the radiator elbow connection sets RAUTITAN;
5. Expand the pipe ends once with the expander head 15 x 1.0 RO or QC (see fig. 2);
6. Insert both radiator elbow connection sets RAUTITAN fully into the fixing unit (see fig. 3);
7. Push the radiator elbow connection sets RAUTITAN fully into the Eurocone of the ball valve block;
8. Tighten the union nuts by hand;
9. Align the radiator elbow connection sets RAUTITAN parallel;
10.Mark the fastening point of the fixing unit (see fig. 4);
11. Detach the radiator elbow connection sets RAUTITAN from the ball valve block;
12. Drill the fastening hole;
13. Fit the radiator elbow connection sets RAUTITAN to the ball valve block;
14. Tighten the union nuts by hand;

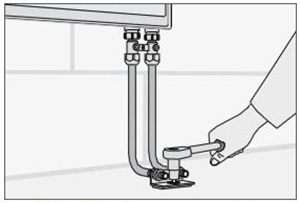

15. Screw the fixing unit to the floor with the appropriate fastening set (see fig. 5);
16. Install the soft-sealing screw connections according to the instructions included in the packaging. Tighten the screw connection sets G ¾ - 15 until they are flush;
17. Create a compression sleeve connection to the heating pipes (see fig. 6);
18. Carry out a leak test;
19. Fully insulate the pipes and connection components.
 |
 |
| рис. 1 | рис. 2 |
 |
 |
| рис. 3 | рис. 4 |
 |
 |
| рис. 5 | рис. 6 |
To guarantee a permanently sealed radiator connection, make sure you adhere to the following binding installation specifications:
