PAM-GLOBAL® CV, CЕ

Installation manual for connecting element PAM-GLOBAL® CV и PAM-GLOBAL®

The connecting element consists of two parts: a clamping sleeve made of stainless steel and elastic sealing cup made of EPDM, with the quality resistance to aging and boiling rubber.

The connecting element consists of two parts: a clamping sleeve made of stainless steel and elastic sealing cup made of EPDM, with the quality resistance to aging and boiling rubber.

Sealing cup on the pipe Open half of the sealing cup is turn out Connection of the pipes

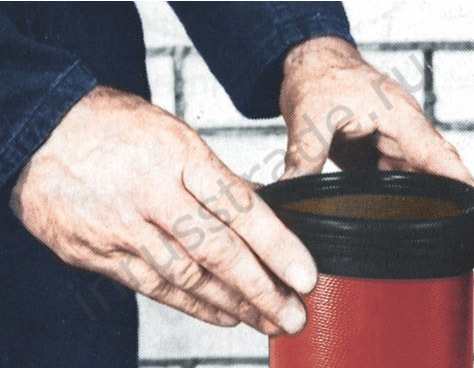

1. First on the bottom of the pipe is planted a sealing cup so that the inner spacer ring evenly laid on the cut of the pipe.

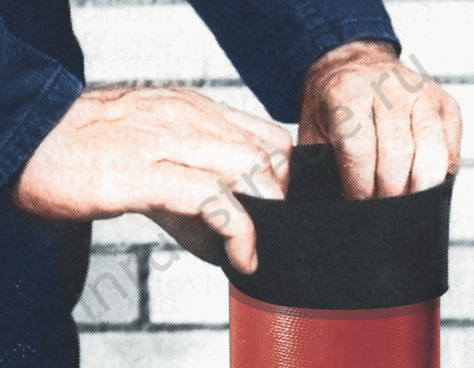

2. The open half of the sealing cup to turn out.

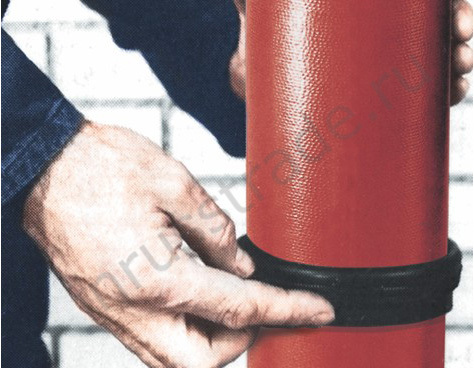

3. The next pipe or fitting pant tightly to the spacer ring, and twisted half of the cup deploy back.

Connecting element which is put on the sealing cup Connecting element with tightened screws

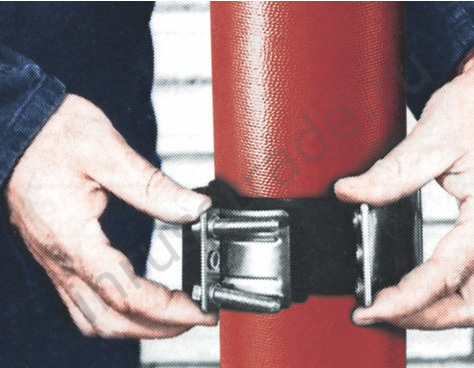

4. Clamping sleeve put around the cup.

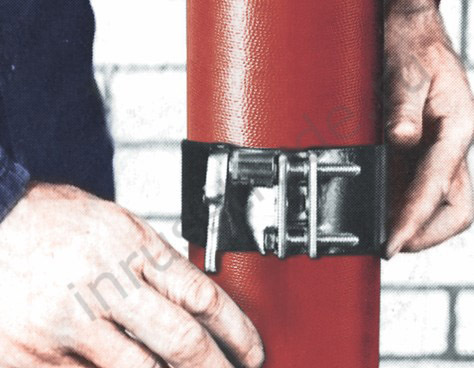

5. Tighten both the clamping screws alternately, uniformly and strongly. Guide plates and plates with thread lock should fit together in parallel in order to prevent deformation.
