PAM-GLOBAL® RAPID-S-W2, RAPID-INOX

Installation manual for connecting element PAM-GLOBAL® RAPID-S-W2, PAM-GLOBAL® RAPID-INOX

Connecting element on the edge of the pipe Connection of two pipes with coupling Coupling with tightened screw

1. Plant the supplied in the complex connecting element on the edge of the pipe to an average space seal ring.

2. The next edge of the pipe insert into the connecting element on the other side.

3. Using the socket wrench, torque wrench or pulse screwdriver tighten the screw with inner hexagon socket, if possible to the connection of the two clipping jaws.



Large diameters couplings installation

Open strap Coupling on the edge of the pipe Sealing gasket stretched on edge of the pipe

1. Open the stainless steel strap.

2. Slide the stainless steel strap loose, around the first pipe component.

3. Push the sealing gasket onto the component spigot so it abuts on the central
register of the gasket.

Second component pushed into the sealing gasket Strap over the sealing gasket Connecting element with tightened screw

4. Push the second component into the sealing gasket, so that it abuts on the central register.

5. Bring the steel strap over the sealing gasket.

6. Tighten the bolt with a ratchet spanner or a power tool applying the following
tightening torque: DN 250 and DN 300=25 N.m.



Open strap assembly

An open strap is sometimes required to ease access: stack installation etc…

Rubber gaskets onto the spigot ends top and bottom Securing the connecting element Coupling around the gasket Coupling with tightened bolt

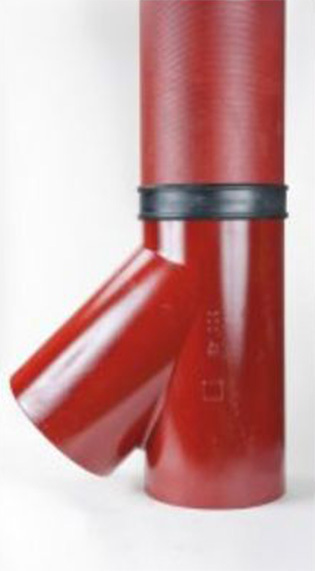

1. Push the rubber gaskets onto the spigot ends top and bottom, ensuring the central registers are abutted against each spigot edge.

2. Twist the stainless steel strap to ease the wrapping around the pipe components.

3. Clip the bolt and loosely assemble the coupling around the gasket.

4. Check alignment of assembly before tightening the bolt with a ratchet spanner or a power tool applying the following tightening torque: DN 250 and DN 300= 25 N.m.
